Description
Ball rebound hardness testers HARTIP series
HARTIP 3000, HARTIP 1800 and HARTIP 2000
All these testers are easy to use and suitable for testing the hardness of all metals, especially on site for large structures, assemblies… The HARTIP 3000 is widely used in the energy industry, petrochemicals, aeronautics, automotive, machine tools, rotating machinery, frames…
Measuring principle
The principle of HARTIP series hardness testers is defined by “the quotient of the impact and rebound velocities of a tungsten carbide impact body”. The harder the material, the closer the rebound speed to the impact speed. The softer the material, the lower the rebound speed.
It’s very simple: place the probe on the surface to be tested, compress the impact body, press the button on the probe and read the value on the device. The measurement is converted directly into the chosen unit system: Brinell, Vickers, Rockwell or Shore. The measurement can be compensated for measurement angles.
Hartip 2000
The HARTIP 2000 portable hardness tester is an innovative Leeb portable hardness tester featuring our new patented technology. There’s no need to define the direction of impact when measuring at any angle. As a result, HARTIP 2000 offers linear accuracy comparable to the angle compensation method. HARTIP 2000 is also a low-cost hardness tester with many other features.
Technical specifications
| Model | HARTIP 2000/HARTIP2000 DL |
| Principle | Ball rebound measurement / Leeb |
| Precision | ±0.3% @ HL=800, Repétabilité: ±2HL |
| Display | LCD display with backlight |
| Units | HL/HRC/HRB/HB/HV/HS/σb |
| Gamme de mesures | HL170-960/ HRC17-69/ HRB13-101.7/ HB20-655/ HV80-940/ HS32-99.5 |
| Corps d’impact | D / D-DL 2-in-1 (External) |
| Management | Any angle |
| Materials | 11 classic metallic materials |
| Memory | 300 storable data points |
| Statistics | Automatically calculated |
| Recalibration | Possible for the user |
| Interface | Bluetooth / RS232 to mini-printer |
| Indicator | Battery indicator |
| Stop | Auto |
| Energy | 1.5V AA piles alcalines x 2 |
| Environment | -10~+40ºC |
| Standard | Conforme à ASTM A956 |
| Dimensions (mm) | 124x67x30 |
| Net weight (g) | 240 |

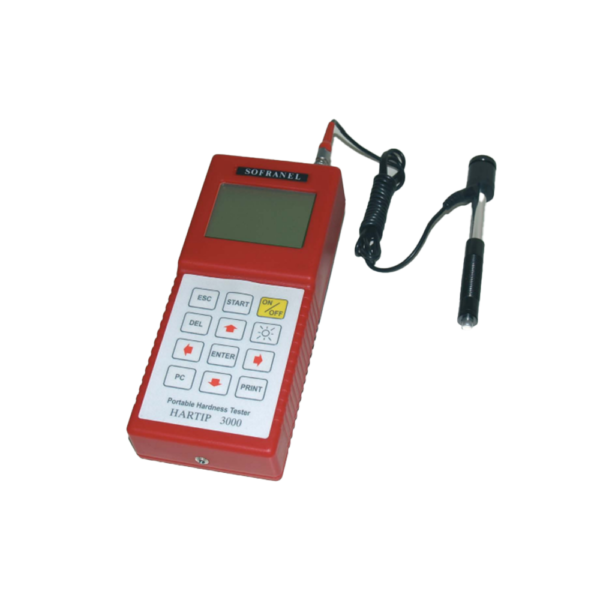

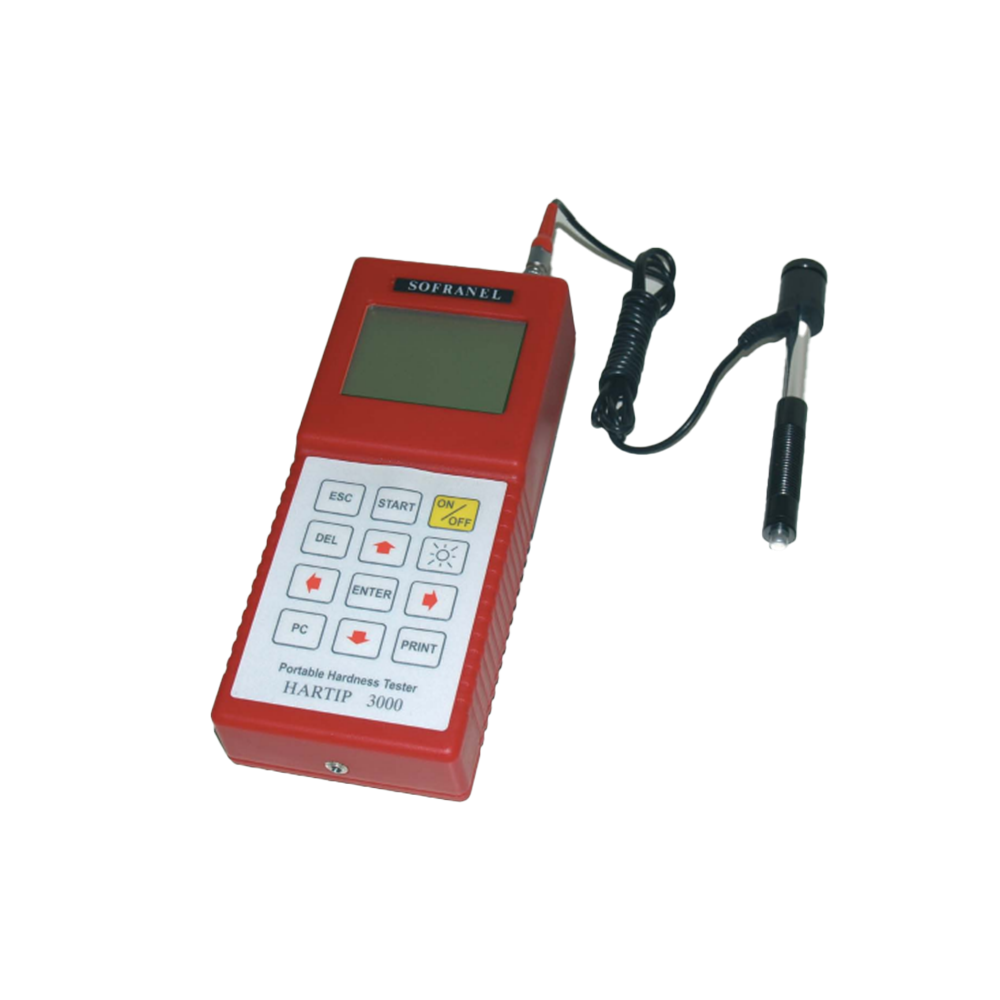

Hartip 3000
| Model | HARTIP 3000 |
| Principe | Ball rebound measurement / Leeb |
| Précision | +/-0.5%@HL=800 |
| Affichage | Large LCD display with backlighting |
| Units | HL/HRC/HRB/HB/HV/HS |
| Measurement range | HL200-960 / HRC19-70 / HRB13-109 / HB20-655 / HV80-1027 / HS31.9-102.8 |
| Impact body | D (standard) DC/DL/C/D+15/E/G (option) |
| Materials | 9 classic metallic materials |
| Memory | 960 points de données |
| Statistics | Average / Max. / Min. / value |
| Interface | RS232 to PC / Micro-printer |
| Indicator | Battery indicator |
| Stop | Auto |
| Energy | 1.5V AA alkaline batteries x 2 |
| Environment | -10~+40ºC |
| Standard | Conforms to ASTM A956 |
| Dimensions (mm) | 195x84x38 |
| Net weight (g) | 550 |
Hartip 1800
| Model | HARTIP 1800 |
| Principle | Mesure par rebond de billes / Leeb |
| Precision | +/-2HL(0.5%@HL=800) |
| Display | Ecran LED |
| Directions | Reconnaissance automatique |
| Units | HL/HRC/HRB/HB/HV/HS/σb |
| Measurement ranges | HL200-960 / HRC19-70 / HRB13-109 / HB20-655 / HV80-940 / HS32-99.5 / HRA30-88 |
| Impact body | D (Internal) D/DL 2-in-1 (Internal, optional) |
| Materials | 9 matériaux métalliques classiques |
| Memory | 360 000 points de données |
| Statistics | Moyene / Max. / Min |
| Recalibration | Possible pour l’utilisateur |
| Interface | USB pour transfert vers PC et recharge batterie |
| Indicator | Indicateur de batterie |
| Stop | Auto |
| Energy | Batterie 3.7v Li-ion rechargeable |
| Environment | -40~+80°C |
| Standard | ASTM A956 |
| Dimensions (mm) | 148x44x22 |
| Net weight (g) | 110 |
