These technical mono-element by immersion translators to longitudinal waves, adapted to the acoustic impedance of the water by a front face of a thickness equal to / 4. They allow the transmission of ultrasound in partially or totally submerged parts.

Benefits:

  • The immersion technique ensures uniform coupling.
  • The impedance matching by quarter wave plate improves power transmission.
  • 303 stainless steel housing resistant to corrosion, with chromed brass connectors.
  • HF shielding improves the signal / noise ratio.
  • All technical translators immersion are available with a point-focus (spherical lens) or straight (cylindrical lens).
  • Focusing on customer demand concentrates the sound beam to increase the small defects detection sensitivity.
  • The cylindrical focusing reduced interface noise on tubes and bars.

Applications:

  • Automated scans.
  • Continuous thickness measurements.
  • High-speed defect detection in pipes, bars, sheets and other parts.

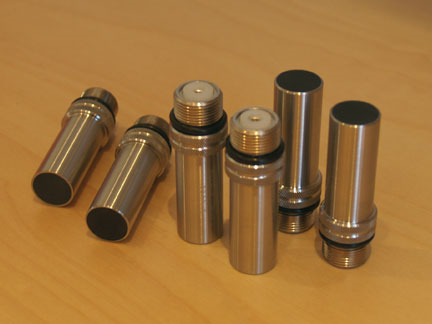

Standard Immersion Cases

  • Cases standard size (diameter 16 mm) with axial UHF connector
  • Focusing on demand
  • Translators adaptable in immersion mirrors bores controls inside
  • Adaptable translators with water jet nozzles to control local immersion
Immersion standard housing scheme A B C
44 16 19
Boîtiers IB "Standard"
Frequency MHz Element diameter (mm) High sensivity High resolution
0.5 10 13 IBMF-503 IBMF-504
1 6 10 13 IBMF-012 IBMF-013 IBMF-014 IBHG-012 IBHG-013 IBHG-014
2,25 6 10 13 IBMF-022 IBMF-023 IBMF-024 IBHG-022 IBHG-023 IBHG-024
3,5 6 10 13 IBMF-032 IBMF-033 IBMF-034 IBHG-032 IBHG-033 IBHG-034
5 6 10 13 IBMF-052 IBMF-053 IBMF-054 IBHG-052 IBHG-053 IBHG-054
7,5 6 10 13 IBMF-072 IBMF-073 IBMF-074 IBHG-072 IBHG-073 IBHG-074
10 6 10 13 IBMF-102 IBMF-103 IBMF-104 IBHG-102 IBHG-103 IBHG-104
15 6 10 13 IBMF-152 IBMF-153 IBHF-154 IBHG-152 IBHG-153 -
20.0 6 10 IBHF-202 - IBHG-202 IBHG-203
25 6 IBHF-252 IBHG-252
Cable to all translators LEMO1 / UHF, 58-2 LCU reference or BNC / UHF, BCU-58-2 Reference

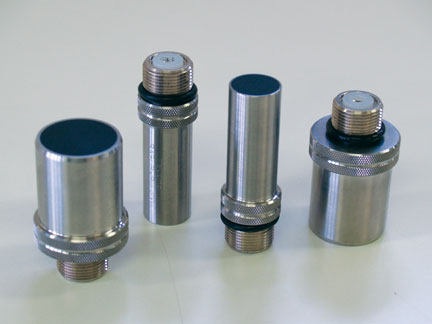

Large diameter immersion housing

  • Large diameters element increases the length of the near field, and thus allow for longer focal lengths.
  • Large diameters can increase the pace of the sweep.
  • Low frequency and large opening angle available for specific problems.
Large diameter Immersion housing scheme Boîtier Élément A B C
IC 19 mm 35 mm 25 mm 29 mm
ID 25 et 29 mm 35 mm 29 mm 35 mm
Frequency MHz Element diameter (mm) High sensivity High resolution
0,5 19 25 29 ICMF-506 IDMF-508 IDMF-509 ICHF-506 IDHF-0508 IDHF-509
1 19 25 29 ICMF-016 IDMF-018 IDMF-019 ICHG-016 IDHG-018 IDHG-019
2,25 19 25 29 ICHF-026 IDHF-028 IDHF-029 ICHG-026 IDHG-028 IDHG-029
3,5 19 25 29 ICMF-036 IDMF-038 IDMF-039 ICHF-036 IDHG-038 -
5 19 25 ICMF-056 IDMF-058 ICHG-056 IDHG-058
7,5 19 ICMF-076 ICHG-076
Câble pour tous ces traducteurs LEMO1/UHF, référence LCU 58-2 ou BNC/UHF, référence BCU-58-2

Immersion housing "Slim Line"

  • Stainless steel housings 10 mm in diameter, ideal for hard to reach areas
  • Axial connector Microdot
  • Available with diameters of piezoelectric elements 3 and 6 mm, at frequencies of 25 MHz
  • Casing length of 50 mm for use with mirrors
Immersion housing Slim Line scheme A B
10 mm 50 mm
Fréquence MHz Diamètre élément (mm) Haute Sensibilité Haute Résolution
1 3 6 IPM0101GP IPM0102GP IPM0101HR IPM0102HR
2,25 3 6 IPM0201GP IPM0202GP IPM0201HR IPM0202HR
3,5 3 6 IPM0301GP IPM0302GP IPM0301HR IPM0302HR
5 3 6 IPM0501GP IPM0502GP IPM0501HR IPM0502HR
7,5 3 6 IPM0701GP IPM0702GP IPM0701HR IPM0702HR
10 3 6 IPM01001GP IPM01002GP IPM01001HR IPM01002HR
15 3 6 IPM01501GP IPM01502GP IPM01501HR IPM01502HR
20 3 6 IPM02001GP IPM02002GP IPM02001HR IPM02002HR
25 3 6 IPM02501GP IPM02502GP IPM02501HR IPM02502HR
Cable to all translators LEMO1 / Microdot, Reference LCM 74-2 or BNC / Microdot, Reference 2124-2

"Pencil" Immersion housing

  • Stainless steel case 10 mm in diameter, ideal for restricted areas.
  • Supplied with axial outlet by UHF jack
  • Available for 6 and 3 mm diameter elements. Used with mirrors
Immersion housing Pencil scheme A B C
63.5 mm 10 mm 19 mm
Frequency MHz Element diameter (mm) High sensivity High resolution
1 3 6 IAMF-011 IAMF-012 IAHG-011 IAHG-012
2,25 3 6 IAMF-021 IAMF-022 IAHG-021 IAHG-022
3,5 3 6 IAMF-031 IAMF-032 IAHG-031 IAHG-032
5 3 6 IAMF-051 IAMF-052 IAHG-051 IAHG-052
7,5 3 6 IAMF-071 IAMF-072 IAHG-071 IAHG-072
10 3 6 IAMF-101 IAMF-102 IAHG-101 IAHG-102
15 3 6 IAMF-0151 IAMF-0152 IAHG-0151 IAHG-0152
20 3 6 IAMF-201 IAMF-202 IAHG-201 IAHG-202
25 3 6 IAMF-251 IAMF-252 IAHG-251 IAHG-252
Cable to all LEMO1 / UHF translators reference LCU 74-2 or BNC / UHF, BCU-58-2 Reference

Immersion housing "Paintbrush"

Immersion housing Paintbrush scheme Élément A B C
76x6mm 21 19 76
51x6mm 21 19 63.5
38x6mm 21 19 51
Frequency MHz Element diameter (mm) High sensivity
2,25 38 x 6 51 x 6 76 x 6 PB 021 PB 022 PB 023
3,5 38 x 6 51 x 6 76 x 6 PB 031 PB 032 PB 033
5 38 x 6 51 x 6 76 x 6 PB 051 PB 052 PB 053
7,5 38 x 6 51 x 6 76 x 6 PB 071 PB 072 PB 073
10 38 x 6 51 x 6 76 x 6 PB 101 PB 102 PB 103
Cable to all LEMO1 / UHF translators reference LCU 74-2 or BNC / UHF, BCU-58-2 Reference
