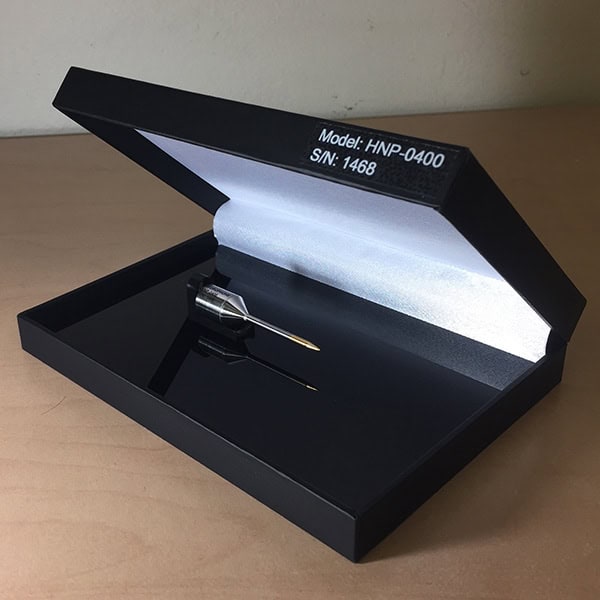

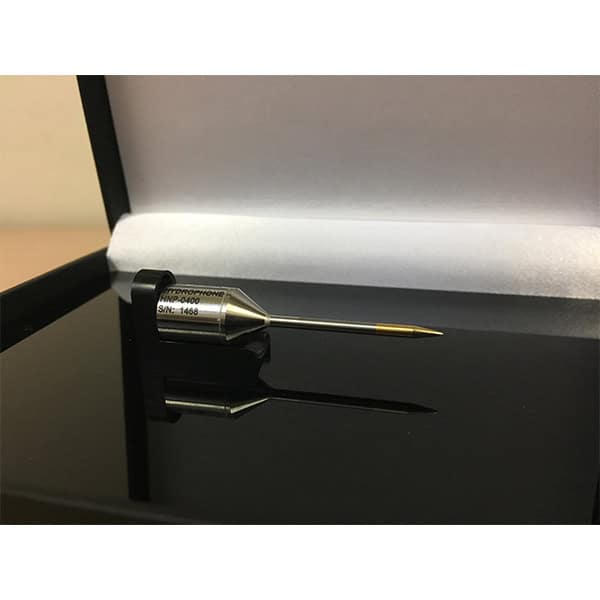

The hydrophones are used to characterize the acoustic beam in water. They allow to map the acoustic beams immersion translators. All hydrophones that we offer are made of PVDF elements covered with a layer of gold. Over the item is small over the hydrophone is broadband and sensitive to short wavelengths. Typically, a 0.4 mm diameter hydrophone has a substantially uniform spectral response curve in the band from 1 MHz to 20 MHz. The hydrophones are supplied with a fixed cable and SMC output. Optionally, they can be delivered with absolute characterization sound pressure.
| Diameter mm | With Microdot* connector | With PIN connector | Fixed cable 1 metre, BNC terminated |
|---|---|---|---|
| 0,5 | NM-0.5 | ||
| 1,0 | NM-1.0 | NP-1.0** | NC-1.0 |
| 1,5 | NM-1.5 | NP-1.5** | NC-1.5 |
Do not hesitate to download the notice (PDF format) for this product:
