MAGMAN, scanner manuel à roues magnétiques

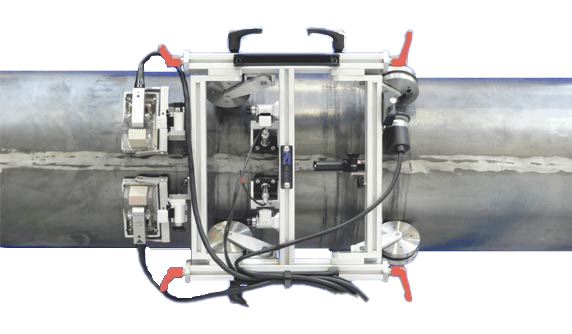

MAGMAN Magnetic Wheel Scanner (circumferential and longitudinal welds). It is specially designed for manual inspection and ideally suited for combined or independent use of TOFD, Phased Array, and Pulse/Echo methods. Compact and robust, it can carry 2 to 12 probes and is capable of operating not only on flat surfaces but also on pipes with a minimum diameter of 37 mm (circumferential welds) or 230 mm (longitudinal welds).

Features:

• Fast and cost-effective inspections
• Versatile and efficient
• Robust and modular structure suitable for on-site work
• Compact (340 mm x 160 mm) and lightweight (3 kg)
• Ideal for inspection on piping, pressure vessels, and storage tanks
• Self-supporting system
• Quick probe positioning
• TOFD and corrosion mapping inspection
• Encoding for A, B, and D scan acquisition
• Inspection of circumferential or longitudinal welds

Magman 2 – includes: Wheel encoder with 5 m encoder cable (Connector type to be specified by customer). Probe holder: 2 probe holders with 30x30 mm fork Magman 4 – includes: Wheel encoder with 5 m encoder cable (Connector type to be specified by customer). Probe holder: 4 probe holders with 30x30 mm fork Magman 6 – includes: Wheel encoder with 5 m encoder cable (Connector type to be specified by customer). Probe holder: 6 probe holders with 30x30 mm fork Magman 8 – includes: Wheel encoder with 5 m encoder cable (Connector type to be specified by customer). Probe holder: 8 probe holders with 30x30 mm fork
