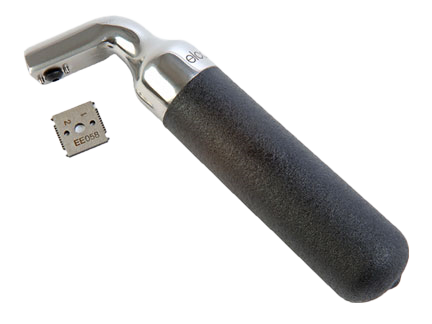

Test de quadrillage F107

Simple

• Position the cutter and grid the surface for testing
• Easy cutter changeover
• Four usable sides per cutter
• Ergonomic handle

Versatile

• For right- or left-handed use
• For all types of coating on all substrates
• Interchangeable cutters
• Complies with NF, ISO and ASTM standards

Rugged

• Robust design
• Wear-resistant
• Easy-grip handle
• ABS carrying case
• Effortless testing thanks to

Functional

• Handle with non-slip coating
• Wide range of cutters available
• Two test kits available

A coating may look good, but how well does it adhere to the substrate? The 107 grid test kits provide an instant result on the quality of adhesion to the substrate.

107 cutters have four usable sides. This increases the service life of each cutter. Use the table below to select the right kit for your application, based on existing nuns

Specifications

Coating thickness	Substrate type	Number of teeth	Spacing	Test method	Part no. Cutter
0-50 µm	Metal	11	1 mm	ASTM D33598	T10713700-2
0-60 µm	Hard	6	1 mm	EN ISO 2409	T10713700-1
0-60 µm	Medium	11	1.5 mm		T10713700-3
0-60 µm	Flexible	6	2 mm	EN ISO 2409	T10713700-4
50-125 µm	hard and soft	6	2 mm	ASTM D3359B	T10713700-4
61-120 µm	hard and soft	6	2 mm	EN ISO 2409	T10713700-4
121-250 µm	hard and soft	6 fentes	3 mm	EN ISO 2409	F107---5M
125-250 µm	hard and soft	6 fentes	3 mm	EN ISO 2409	F107---5M
125-250 µm	hard and soft	6	3 mm	Quick test	T10713700-5
>125	hard and soft	individual blade	X	ASTM D3359A	F107---5M

Cutter type	Complete kit		KitBasic	Accessories
	ISO	ASTM
6 teeth 1mm	F10713348-6	F10713348-1	F10713222-1	cutter 6x1mm	T10713700-1
11 teeth 1mm		F10713348-2	F10713222-2	cutter 11x1mm	T10713700-2
11 teeth 1.5mm			F10713222-3	cutter 11x1.5mm	T10713700-3
6 teeth 2mm	F10713348-9	F10713348-4	F10713222-4	cutter 6x2mm	T10713700-4
6 teeth 3mm			F10713222-5	cutter 6x3mm	T10713700-5
individual blade with 2 and 3 mm grid	F107---5M	F107---5M		adhesive ASTMD3359	T1078894
				adhesive ISO2409	T1079358
				brush	T10713357
				magnifying glass	T10713356
				suitcase	T10713349
				clé Allen	T1076287
