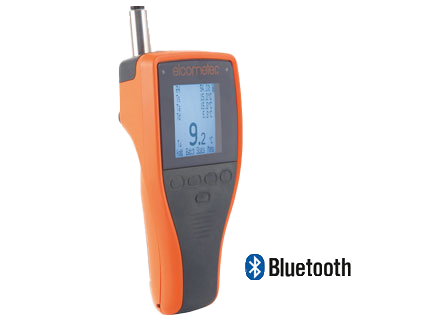

Mesureur point de rosée G319

In the industrial sector, to apply a coating successfully, it's vital to control climatic conditions: temperature, humidity, dew point... These parameters are decisive not only for coating application, but also for the quality and performance of the coated product. In the protective coating industry, we know that moisture forms on the surface when the surface temperature is low enough for condensation to form. The dew point temperature (Td) corresponds to this point. By controlling surface temperature (Ts) as a function of air temperature (Ta) and relative humidity (%RH), dew point temperature can be calculated and compared with surface temperature. The temperature difference (-T) is a key parameter that dictates the optimum conditions for applying a coating. In the protective coatings industry, we know that moisture forms on the surface when the surface temperature is low enough for condensation to form. The dew point temperature (Td) corresponds to this point. Complies with standards: (BS 7079-B4) (IMO MSC.215(82)) (IMO MSC.244(83)) (ISO 8502-4) (NSTM 009-32) (US Navy NSI 009-3) (US Navy PPI 63101-000)In the protective coating industry, we know that moisture forms on the surface when the surface temperature is low enough for condensation to form. The dew point temperature (Td) corresponds to this point. The G319 dew point meter measures and stores all the parameters needed to monitor climatic conditions and determine whether they are suitable for paint application.

User-friendly

Intuitive, multi-language menu with large, bright, user-configurable display.

Robust

Protection against dust and water, equivalent to IP66. Sensors are perfectly insulated, for use in the harshest environments.

Powerful integrated magnets

For attaching the gauge to ferrous objects without the need for a fastening device.

Versaltile

Portable dew point meter and remote measurement acquisition device in a single gauge*.

Maximum/minimum limits

limits can be set for all parameters, with an audible and visual signal when limits are reached.

Memory

The standard gauge has 10 measurements in memory (rotating memory). The Top gauge has a large internal memory for storing up to 25,000 sets of measurements in 999 batches.

Bluetooth* data export

Wireless connection to a PC. Data is downloaded and processed using ElcoMasterTM software, supplied free of charge. Control reports can be created in seconds. With ElcoMasterTM Mobile Software, data can be e-mailed directly from the measurement site to a PDA.

Accurate

Short response time Changeover from degrees Celsius to degrees Farenheit Date and time for all measurements

Simple

Multilingual user menu

Bright, clear display showing up to five parameters, including :

• RH: %Relative Humidity
• Ts: Surface temperature
• Ta: Ambient temperature
• Td: Dew point temperature
• T-: Difference between Td and Ts
• Tdb: Dry bulb temperature
• Twb: Wet bulb temperature

Trend indicators for all these parameters

Source of employment

Can be used both as a portable dew point meter and as a remote measurement recording device*. Integrated thermocouple socket for magnetic surface probe or liquid probe. Transformation of the gauge into a simple thermometer by switching to "Te" mode - ideal for pre-application coating temperature measurements, or other external temperatures. Hold/Freeze function for making and reviewing manual measurements before saving to memory.

Durable

Made from heat-resistant materials. Dust-tight and waterproof, protection equivalent to IP66. Robust, ergonomic design. Sensors are fully insulated and built to last.

Versatile

Data can be downloaded to a PC via USB or Bluetooth connection* and processed with ElcoMasterTM Software* ElcoMasterTM Software features a "Watchguard" function enabling the user to remotely control up to 24 gauges on a single screen* Each gauge operates either on two AA batteries or directly via the USB cable.

The limits of each parameter can be set. An audible and luminous signal is triggered as soon as these limits are exceeded, even if this does not appear on the display.

Technical Data

	Range	Precision	Resolution
Air temperature (Ta)	-20 à 80°C (-4 à +176°F)	±0,5°C (±1°F)	0,1°C (0,1°F)
Surface temperature (Ts)	-20 à 80°C (-4 à +176°F)	±0,5°C (±1°F)	0,1°C (0,1°F)
External thermocouple type K (Te)	-40 à 200°C (-40 à +392°F)	±0,5°C (±1°F)**	0,1°C (0,1°F)
Relative humidity (RH)	0 à 100%RH	±3%RH	0,1%
Gauge and LCD operating temperature	-20 à 80°C (-4 à 176°F)
Power supply	2 piles AA 1,5V ou par câble USB
Battery life	MagnetsManual mode: over 40h (without backlighting) interval storage*: up to 400h (1 measurement every 10 minutes)
Dimensions	80 x 75 x 35mm (7 x 3 x 1,4'')
Mass	300g
*319 Top only	** Précision ±2°C (±4°F) quand on utilise les sondes fournies

Features	Standard	Top
Measurement parameters	O	O
Dust- and waterproof gauge with integrated, sealed sensors (equivalent to IP66)	O	O
External thermocouple type K (Te)	-40 à 200°C (-40 à +392°F)	±0,5°C (±1°F)**
Magnets	O	O
Limites Maxi/Mini	O	O
Multi-language menus	O	O
Backlight	O	O
Type K connection for external measurements	O	O
Memory	The last ten backups	25,000 backups in 999 batches
Manual recording	O	O
Interval recording		from 1 second to 1 hour
USB and Bluetooth wireless output		O
ElcoMasterTM and ElcoMasterTMMobile software		O
Item code	G319----S	G319----T
Packing list	G319 dew point meter, AA batteries (x2), wrist strap, carrying case, calibration certificate, USB cable*, ElcoMasterTM and ElcoMaster TMMobile Software* and instruction manual.
