Comparateurs

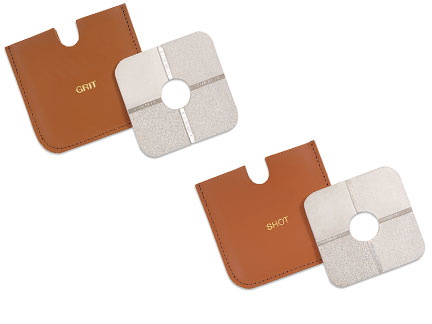

Surface comparator 125

Comparators enable surface roughness to be assessed by visual and tactile methods.

• Available in both shot-blasted and pickled versions
• Metric units only

According to standards: ASTM D 4417 Method A ISO 8503-1 // ISO 8503-2

	Pickled (grit)	Genaillé (shot)
Section profiles	25, 60, 100, 150µm	25, 40, 70, 100µm
Item code	E125----1	E125----2

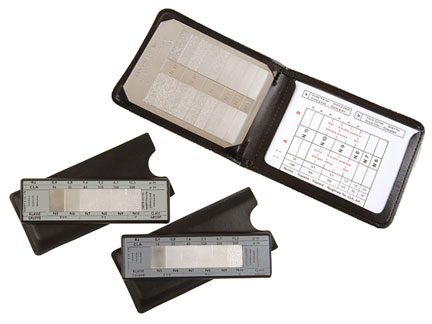

Rubert and Rugotest 129 surface comparators

The 129 is available in two models:

• 129 Rubert - available in shot-blasted and pickled versions
• 129 Rugotest - includes shot-blasted and pickled profiles on the same block.
• Metric units only
• Roughness is displayed in both classes and groups for easy identification.

According to ASTM D 4417 Method A

	129/1 Pickled rubert	129/2 Rubert Grenaillé	129/3 Shot-blasted and pickled Rugotest
Section profiles	0,4; 0,8; 1,6; 3,2; 6,3; et 12,5µm	0,4; 0,8; 1,6; 3,2; 6,3; et 12,5µm	N6, N7, N8, N9, N10 and N11 equivalent to 0.8; 1.6; 3.2; 6.3; 12.5 and 25µm mean roughness respectively
Item code	E129----1	E129----2	E129----3

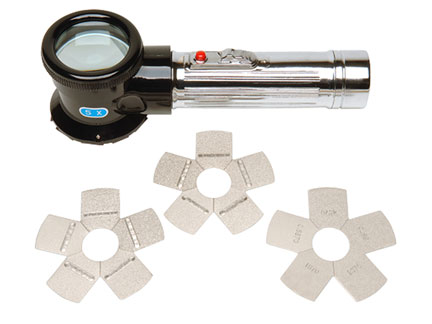

Keane-Tator surface profile comparators and magnifier 127

Comparators allow surface roughness to be assessed visually and tactilely :

• Three versions: sandblasted, shot-blasted and pickled
• Five different roughness levels in each comparator
• Designed for use with the 127 illuminating magnifier
• Imperial units only

Selon norme : ASTM D 4417 Méthode A
