Specifications:
- Measurement Speed: Adjustable up to 16 measurements/second
- Min Mode: Quickly locates the minimum thickness
- Resolution: Adjustable to 0.01 or 0.001 mm
- Display: LCD with backlight
- Memory: Stores up to 95,000 measurements
- Data Output: RS-232 serial port
- Calibration: Standard 2-point calibration and up to 8 reference points
- Differential Mode: Displays the difference between current and reference thickness
- Alarm Mode: Adjustable high/low alarms with visual and audio signals
- Battery: Rechargeable Ni-Cd battery, 8-16 hours autonomy
- Power Supply: 100/120/220/240 VAC, 48-62 Hz
- Units: mm or inches, selectable via keyboard
- Languages: English, French, German, Spanish
- Operating Temperature: 0° to +50°C
- Dimensions: 238 x 138 x 38 mm
- Weight: 950 g
| Ball Diameter |
Measurement Range |
Accuracy |
| 1,6 mm |
0,001 to 2,59 mm |
+/- 3%* |
| 3,2 mm |
0,001 to 4,57 mm |
+/- 2%* |
| 4,8 mm |
0,001 to 6,35 mm |
+/- 1%* |
| 6,35 mm** |
0,1 to 9,99 mm** |
+/- 1%* |
**Accuracy depends on the measurement range (refer to the user manual for details).
**Measurement capability applies to the 802PR-109 probe only. Contact us for more information.
The

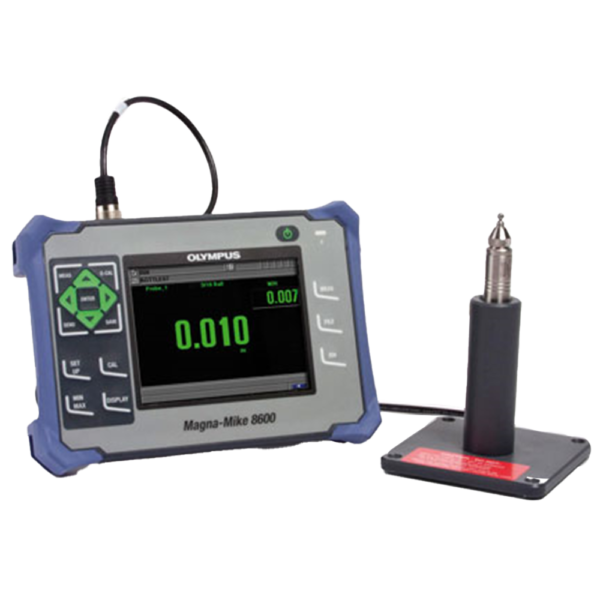

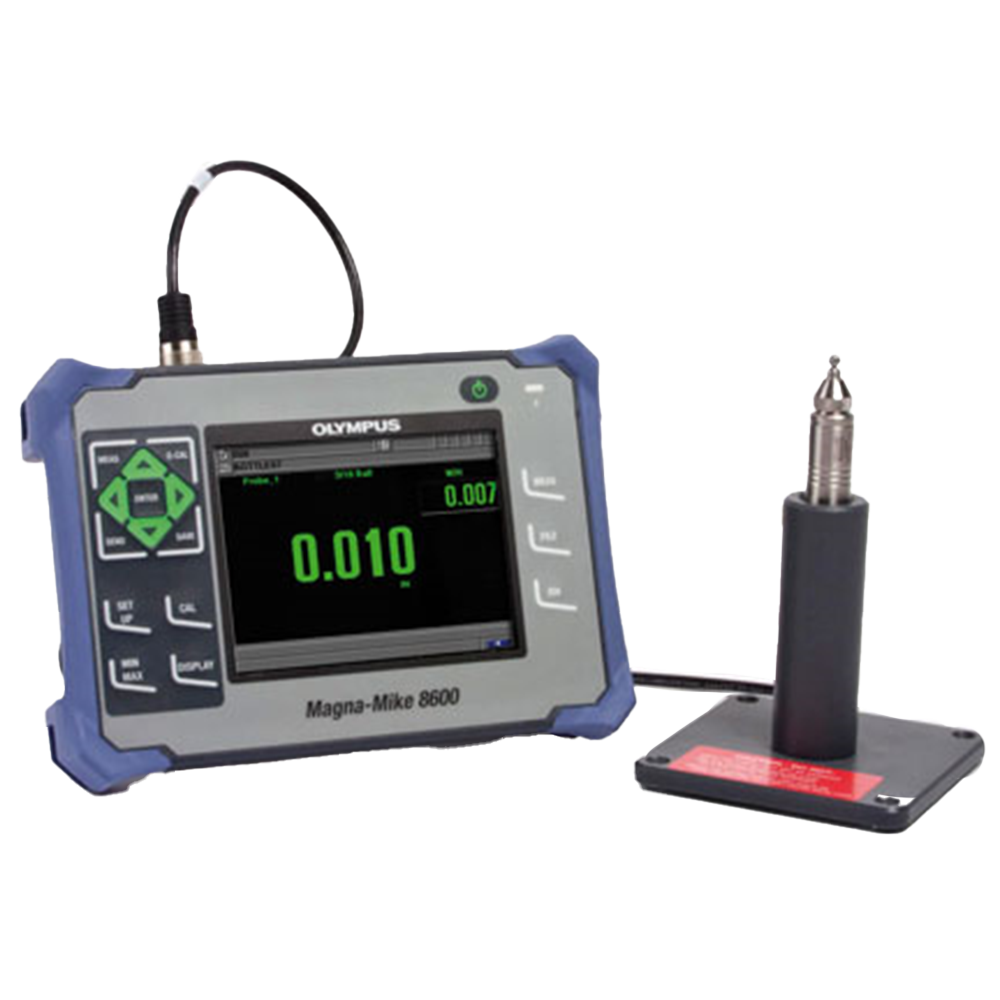

Magna-Mike 8600 comes standard with:
- Probe, probe holder, and cable
- User manual
- Rechargeable Li-Ion battery
- Power supply/charger
- Calibration kit (86ACC-KIT)
- Rubber protective case with adjustable stand
Optional Accessories:
- WinXL: Windows interfacing software
- 85FSW: Foot switch with Lemo connector
- 80CAL-020: 0.020” (0.5 mm) calibration sheet
- 80CAL-080: 0.080” (2 mm) calibration sheet
- 80CAL-240: 0.240” (6 mm) calibration sheet for applications above 0.160” (4 mm)
- 600-BAT-L: Rechargeable battery
- 86PC/86PCC: Probe cables (standard and coiled) / (86-PR1 et 86-PR2)
