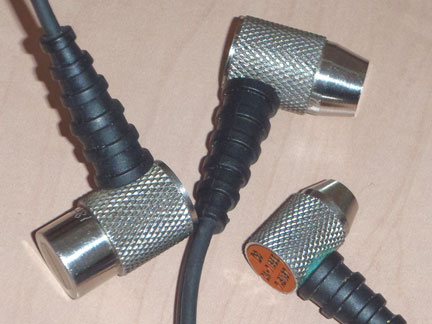

Corrosion thickness measurement transducers

These translators are sending / receiving separate translators, optimized to work with our measuring thicknesses of the EHC series. Nevertheless, they can be connected to other measuring thicknesses (contact us for compatibility).

Transducer	Description	Cable	Output	Diameter mm	Steel range mm	Steel range E-E	Temperature C°	Notes
DK 537	5	Fixed	Angled	9.5	1 - 200 mm	-	0° - 50°	-
DC 537	5	Fixed	Angled	9.5	1 - 200 mm	-	0° - 50°	Piezo-Composite
DK 537EE	5	Fixed	Angled	9.5	1 - 200 mm	2 - 38	0° - 50°	Recommended for coatings
TG 790 HP	5	2210D.2	Axial	9.5	1 - 200 mm	-	-20° +500°
DC 550	5	Fixed	Angled	12.7	0.8 - 200 mm	-	0° - 50°	Piezo-Composite
DK 718	7.5	Fixed	Angled	4.8	0.8 - 50 mm	-	0° - 50°	-
DK 718EE	7.5	Fixed	Angled	4.8	0.8 - 50 mm	1.5 - 25	0° - 50°	Recommended for coatings
DK 1025	10	Fixed	Angled	6.3	0.5 - 45 mm	-	0° - 50°	-
DK 10125	10	Fixed	Angled	3.2	1 - 19 mm	-	0° - 50°	-
DK 250	2.25	Fixed	Angled	12.7	2.5 - 500 mm	-	0° - 50°	-
DC 250	2.25	Fixed	Angled	12.7	2.5 - 500 mm	-	0° - 50°	Piezo-Composite
DC 175	1	Fixed	Angled	19	4 - 500 mm	-	0° - 50°	Piezo-Composite
DC 110	1	Fixed	Angled	25	5 - 500 mm	-	0° - 50°	Piezo-Composite
