Interchangeable protection transducers

These are single element longitudinal waves translators for direct contact control, with a flexible membrane to allow them an easier movement over rough surfaces. Some references, the membrane can be replaced by a delay line. This allows to adapt the form of for example delay lines or low-angle prisms to control axle for example and also high temperature delay lines.

Benefits:

• When the translator is used alone (without any protection options), the epoxy face contact ensures appropriate acoustic impedance control of plastics, many composites, and other low acoustic impedance materials.
• Threaded housings for easy attachment of the membrane holding ring.

Applications:

• Detection of defects under normal incidence.
• Control plates, billets, bars, forgings.
• Search imperfections in the metal sheets, weld inspection, ...
• Control axles and shafts (long play) by using the end of the prisms.
• High temperature control using the appropriate delay lines

Europeans housings

• Enclosures with ergonomic profile sleeves facilitate handling, even with gloves.
• LEMO LEMO connector 1 or 00 in radial or axial position.
• Translators and protections (membranes) are sold separately.
• Cables for use with these LEMO1 translators / LEMO1, reference or LEMO1 1613.2 / 1614.2 00 LEMO reference.

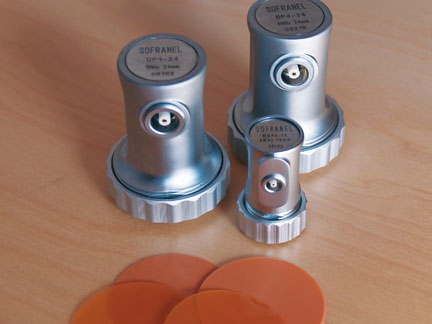

DP and MPD housings

Frequency MHz	Element diameter (mm)	Transducer reference	Connector
1	24	DP 1-24	Lemo 1(radial)
2	10 15 20 24 24	MDP 2-10 SLF 2-15 Z SLF 2-20 L DP 2-24 DP 2-24S	Lemo 00(radial) Lemo 00(radial) Lemo 1(radial) Lemo 1(radial) Lemo 1(axial)
4	10 24 24	MDP 4-10 DP 4-24 DP 4-24S	Lemo 00(radial) Lemo 1(radial) Lemo 1(axial)
5	10 15 20 25	SLF 5-10 Z SLF 5-15 Z SLF 5-20 Z SLF 5-25 Z	Lemo 00(radial) Lemo 00(radial) Lemo 1(radial) Lemo 1(radial)

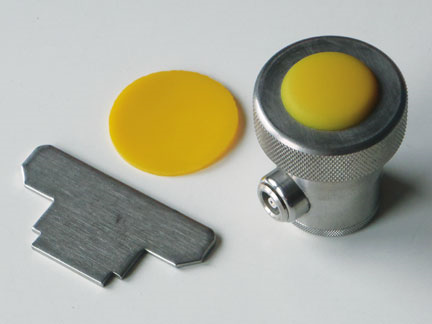

SLF series housing

Interchangeable protective membranes

• Improve the coupling on irregular surfaces
• Let dry coupling on clean surfaces and very smooth

Plastic prisms for low refraction angles

• To control long parts such as axles or axes with a low angle of incidence. Contact us.

Element diameter (mm)	Only membranes Jeu de 10
10 mm	PM-10
15 mm	FD-15
20 mm	FD-20
24 mm	PM-24
25 mm	PM-3

International housings

These translators have a front face particularly utilie resin for adapting membranes protection or delay lines. They can also be used directly in contact with relatively low acoustic impedance materials such as composites or plastics. International housings provide frequency / diameter ratios according to international standards.

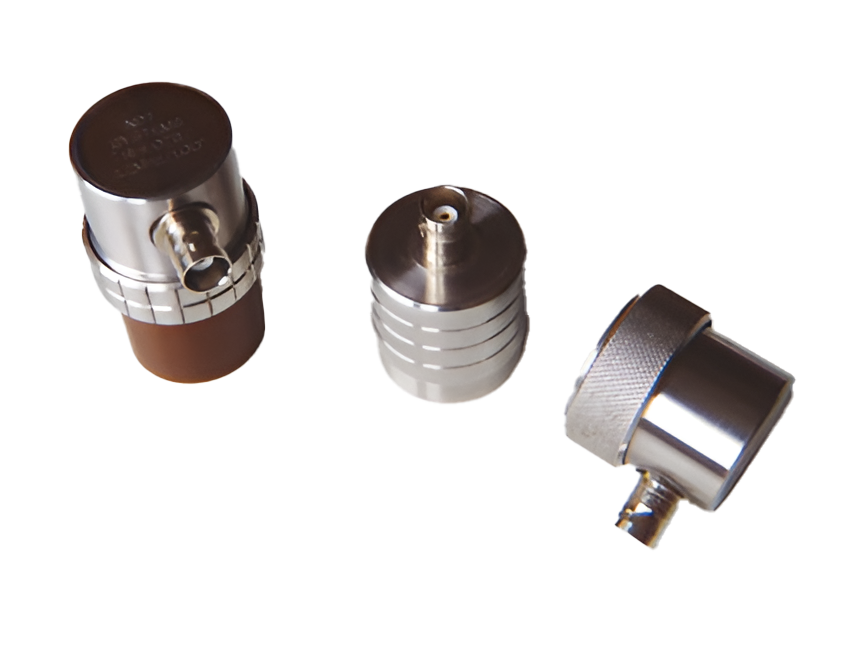

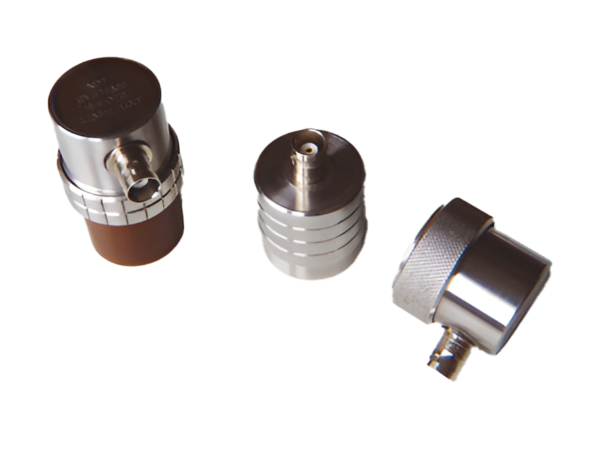

RMF and RHF housings

• Stainless steel housings.
• Radial connector BNC (except LLFxx reference with BNC connector axial position). Some references are available with axial BNC connectors on request. Contact us.
• Translators and protections (membranes) are sold separately.
• Translators protected with bpîtier International come with a ring and a protective membrane.
• These translators can also be used with high temperature delay lines for intermittent contact.
• Cables for use with these LEMO1 translators / BNC, 1612.2 reference.

Element diameter (mm)	A	B	C
13	24	18	33
19	30	24	33
25	34	30	33
29	38	34	34

LLF housings

Element diameter (mm)	A	B	C
Tous	53	39	44

Frequency MHz	Element diameter (mm)	High sensivity	High resolution
0,5	19 25 29 34	RMF-506 RMF-508 RMF-509 LLF 0.5-34 B*	RMF-506 RMF-508 RMF-509
1	13 19 25 29 34	RMF-014 RMF-016 RMF-018 RMF-019 LLF 1-34 B*	RHF-014 RHF-016 RHF-018 RHF-019
2,25	10 13 15 19 25 29 30	SLF 2-10 B* RMF-024 SLF 2-15 B* RMF-026 RMF-028 RMF-029 LLF 2-30 B*	RHF-024 RHF-026 RHF-028 RHF-029
3,5	13 19 25	RMF-034 RMF-036 RMF-038	RHF-034 RHF-036 RHF-38
4	10 25	SLF 4-10 B* SLF 4-25 B*
5	10 13 15 19	SLF 5-10 B* RMF-054 SLF 5-15 B* RMF-056	RHF-054 RHF-056

Element diameter (mm)	Membranes seules (10 par paquets)	High temperature delay lines
10	FD 10
13	PM-5	RD 4
15	FD 15
19	PM-4	RD 6
25	PM-3	RD 8
29	PM-2	RD 9
34	FD 34
