Unipolaires 160 / 220 kV

Name: Unipolaires 160 / 220 kV - Sofranel
Price: 90.00 EUR
Availability: InStock

Radiology

Industries & Applications

Railway

Automotive

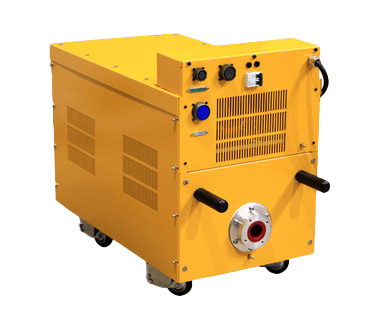

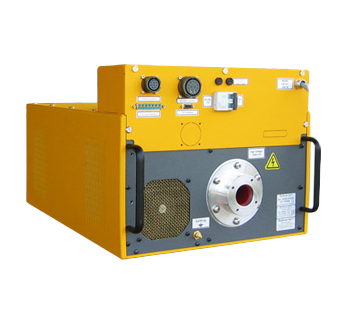

Generators based on a solid-insulated high-voltage module. This technology not only guarantees consistent performance, but also enhances on-site serviceability for equipment maintenance. The XSD160 and XSD225 are powerful, stable and robust units that can be used in mobile (XMD) or stationary versions within a production system. With a very high duty cycle and a wide range of industrial ducts, these units can be directional or panoramic, with different hearth sizes to suit your applications.

Unipolaires cathodiques XSD 160 et XSD 225 - BALTOGRAPH

Generator	Duct model	Voltage (kV)	Power (W)		Foyer - EN 12543		Intensité (mA)		*Pénétration max Fe (mm)**	Poids (kg)
Generator	Duct model	Voltage (kV)	Small	Large	Small	Large	Small	Large	*Pénétration max Fe (mm)**	Poids (kg)
XMD 160	TSD 160-0	160	640	3000	1	5.5	15	40	35	8
XMD 160	TSD 160-1	160	640	1600	1	3	15	40	35	8
XMD 160	TSD 160-3	160	640	640	1	1	15	15	35	8
XMD 160	TSD 160-5	160	800	1800	0.4	1	20	40	35	8
XMD 225	TSD 225-0	225	640	3000	1	5.5	15	30	54	11
XMD 225	TSD 225-1	225	640	1600	1	3	15	30	54	11
XMD 225	TSD 225-3	225	800	1800	0.4	1	14.5	30	54	11

* FFD = 700 mm / Carestream AA400 film / Density = 2 / Application time = 10 min

Do not hesitate to download the notice (PDF format) for this product:

Do not hesitate to download the documentation (PDF format) for this product:
