Câbles (CF)

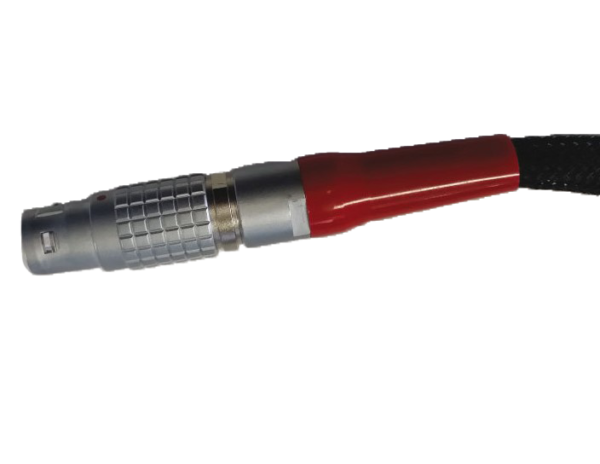

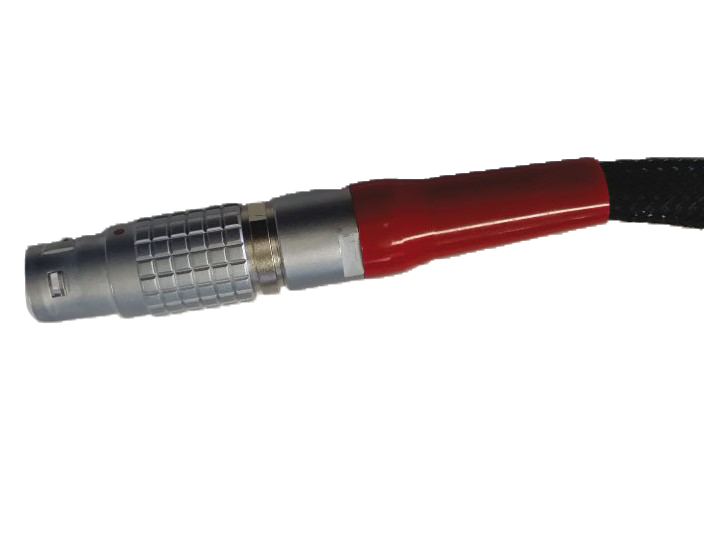

The cable connects the measuring device to the transducer. It is therefore a key component in optimizing the measurement chain in terms of electrical impedance, minimizing losses, shielding, etc. We offer the standard cables listed below, which cover most common applications for thickness measurement or flaw detection. The letter x designates the cable length. Standard lengths are 2 meters and 5 meters. We can also quickly produce other lengths, special types of cables, or custom cables upon request. Please contact us for details.

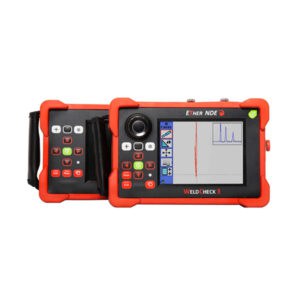

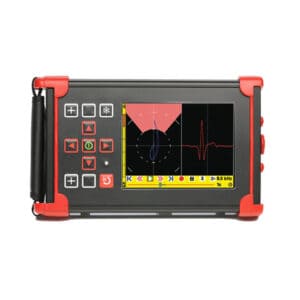

	Reference	Description	Device Connector	Probe Connector	LOCATOR	PHASEC 2S/2D 3S/3D	ETI VANTAGE G2 WELDCHECK AEROCHECK	NORTEC
Reflection Mount	ALL12-L04‐015R	1.5m CABLE Reflection	LEMO/12	LEMO/4		OK	OK		For connecting reflection-type probes
	ALL07‐L04‐015R	1.5m CABLE Reflection	LEMO/7	LEMO/4	OK				For connecting reflection-type probes
Bridge Mount	ALL12-L04‐015B	1.5m CABLE BRIDGE	LEMO/12	LEMO/4		OK	OK		For connecting bridge-type probes
	ALL07‐L04‐015B	1.5m CABLE BRIDGE	LEMO/7	LEMO/4	OK				For connecting bridge-type probes
Absolute Mount	2210.2	2-meter coaxial CABLE LEMO 00/MICRODOT	LEMO/00	μDOT			OK		For connecting probes with μdot connector
	2212.2	2-meter coaxial CABLE LEMO 00/BNC	LEMO/00	BNC			OK		For connecting probes with BNC connector
	2124.1	1-meter coaxial CABLE BNC/MICRODOT	BNC	μDOT	OK with AAL12P-B02S	OK with AAL12P-B02S	OK with AAL12P-B02S	OK	For connecting absolute probes with μdot connector
	1610.1	1-meter coaxial CABLE BNC/BNC	BNC	BNC	OK with AAL12P-B02S	OK with AAL12P-B02S	OK with AAL12P-B02S	OK	For connecting absolute probes with BNC connector
	AAL12P-B02S	61mm rigid adapter - LEMO/12 - BNC			OK	OK	OK		For connecting BNC cable ends to the device
Adapters	AAL16-L12SA	Adapter LEMO/16 – LEMO/12	LEMO/16	LEMO/12				OK	For connecting Ether cables to NORTEC
	AAL16-L12SR	Adapter LEMO/16 – LEMO/12	LEMO/16 Do not hesitate to download the notice (PDF format) for this product: Do not hesitate to download the documentation (PDF format) for this product: × Rechercher × Facebook WhatsApp LinkedIn X Email
