The Bondascope 3100 is the latest easy composite control devices of use and high performance. His predecessor, Bondascope 2100 was the first device to impedance plane to control resonance. The 3100 includes the latest features and industrial requirements such as visualization profile mode, signed mode, a transmitter and probe set High energy, the frequency sweep mode MIA, alarms separate phase and amplitude, the brightest screen large size with adjustable persistence. The probes used or not used according to the coupling mode. The PROFILE mode is a presentation of the amplitude / phase vs. time (encoded following an optional axis) which allows detection and simple interpretation of the signal. Understanding the physical phenomena is simplified using this mode and the operator is more easily put confidence in the results and reproducibility of control. The bondtester 3100 is the only device on the market with this innovative feature. Covered applications include control collages metal structures, non-metal composites and composite structures for a variety of configurations. Detectable abnormalities may be such separations, delaminations, porosity, inclusions, fiber damage, crushing honeycombs, variations adhesive thicknesses. Structures controlled by these techniques, to name the more common, may be bonded composite, monolithic composite sandwich structures with honeycombs. The types of defects can be detected manufacturing defects such as damage from impact encountered
  • Views in the HF shape, impedance plane, amplitude or phase profile, signing mode.
  • Can visualization impedance plane with frequency sweep.
  • Setting the parameters of the pulse Burst mode.
  • Adjustable persistence.
  • Large screen (150 mm) high brightness quarter VGA (320x240 pixels).
  • USB port.
  • Stores up to 250 pictures or screen settings.
  • Powered by Li-Ion battery.
  • Automatic recognition of sensors.
  • Intuitive keypad.
  • Possible settings for wheel or keyboard.

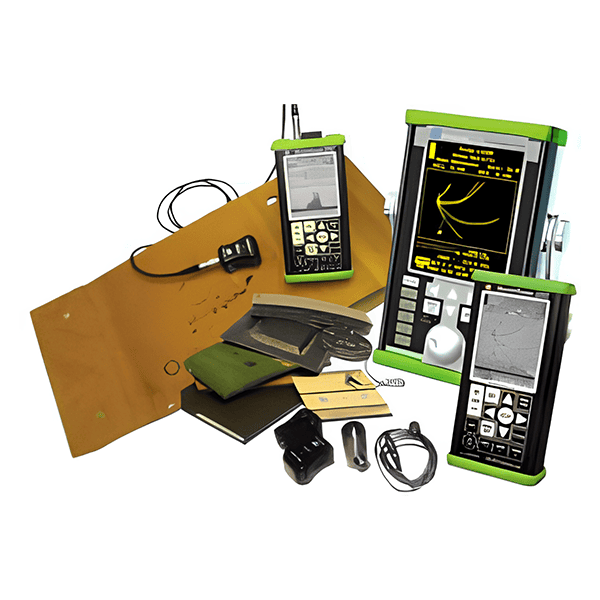

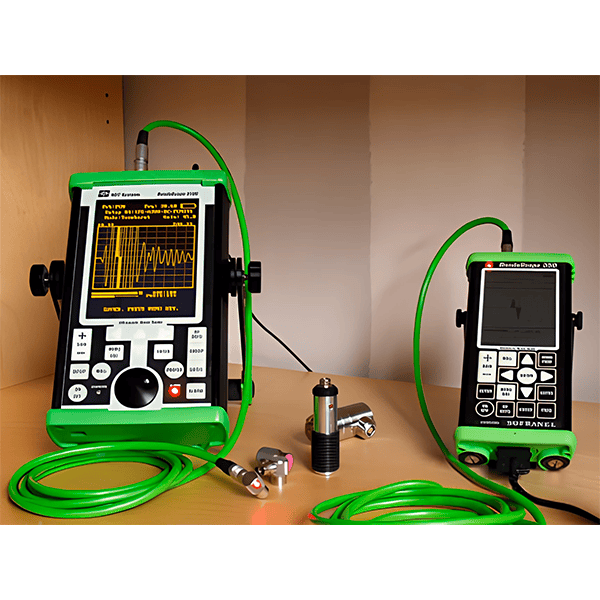

The Bondascope belongs to the family of Bondtester as Bondmaster Several models available: Bondascope 3100, Bondascope 350 and 300 Bondascope. The Bondascope 350 is in a housing that fits in the hand and has a LCD screen. It allows for control by Pitch-Catch mode and résonnace mode.
