Bipolaire 320 / 450 kV

Name: Bipolaire 320 / 450 kV - Sofranel
Price: 90.00 EUR
Availability: InStock

Radiology

Industries & Applications

Railway

Automotive

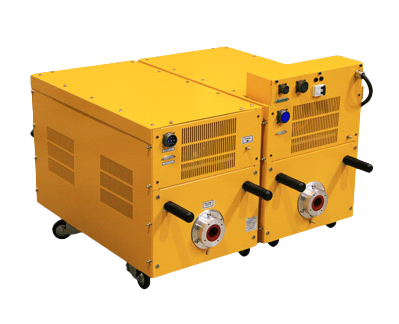

Generators based on a solid-insulated high-voltage module. The XSD320 and XSD450 bifocal generators consist of 2 identical units (cathodic + anodic). They use the same modules as the monopolar unit, and can be upgraded from an existing XSD series monopolar unit. With a continuous adjustment range from 5 to 450kV, these units can drive loads up to 35mA with the various tubes available. Extremely easy to install and connect.

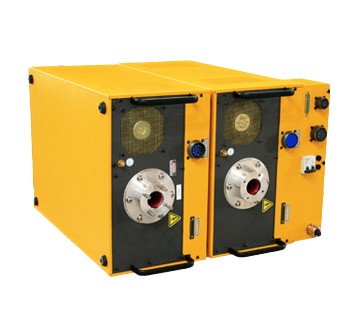

Bipolaire anode et cathode XSD 320 et XSD 450 à isolation solide- BALTOGRAPH

Generator	Duct Model	Voltage (kV)	Power (W)		Fireplace - EN 12543		Current (mA)		*Max Fe penetration (mm)**
Generator	Duct Model	Voltage (kV)	Small	Large	Small	Large	Small	Large	*Max Fe penetration (mm)**
XSD 320	TSD 320-0	320	1500	4200	3	5.5	15	30	76
XSD 320	TSD 320-2	320	640	1600	1.9	3.6	9	20	76
XSD 320	TSD 320-3	320	800	1800	0.4	1	11	25	76
XSD 320	TSD 320-5	320	1500	4200	3	5.5	15	35	76
XSD 450	TSD 450-0	450	900	4500	2.5	5.5	10	24	104
XSD 450	TSD 450-2	450	700	1500	0.4	1	6	14	104

* FFD = 700 mm / Carestream AA400 film / Density = 2 / Application time = 10 min

Do not hesitate to download the notice (PDF format) for this product:

Do not hesitate to download the documentation (PDF format) for this product:
