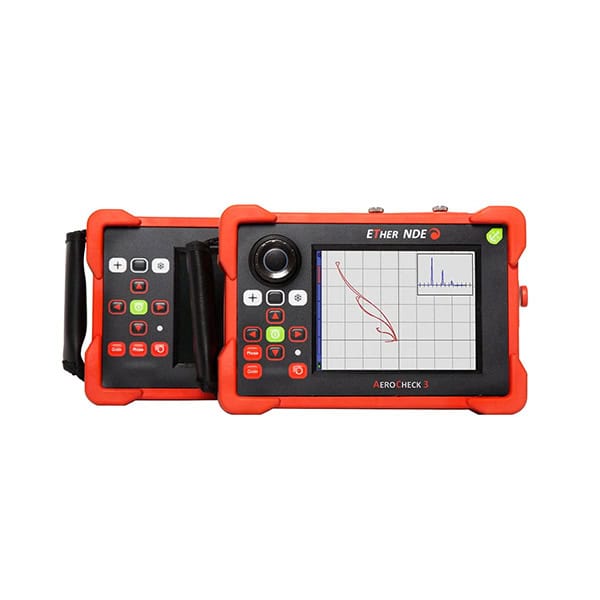

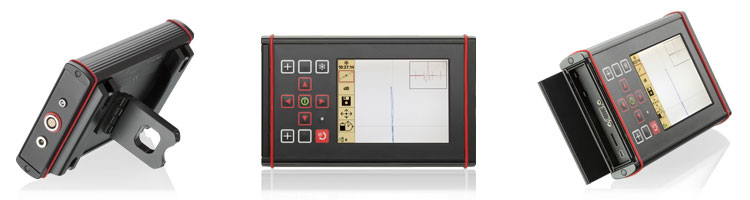

AeroCheck allows you to finish setting several parameters such as Phase, Gain and filters after freezing the signal with all types of probes, including rototest.

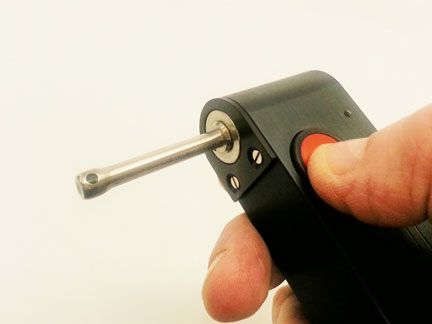

The AeroCheck can drive various mini rotors. These are used to rotate differential probes to find faults in bores.
The devices are capable of driving several mini-rotors of different makes:
- ARD001 and ARD002 from ETHER NDE
- MR3 from ROHMANN via special cable
- SR1 and SR2 from ZETEC via special cable
The TRACE function can be used to display an already stored signal for comparison purposes. An operator can thus have the trace of the standard at the same time as the part signal.
Many aeronautical procedures require conductivity monitoring.
TheAeroCheck automatically switches to this mode when the conductivity probe is connected, and returns to fault-finding mode when it is disconnected.

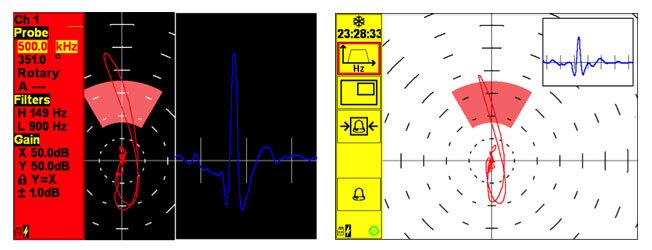

With different settings on the same probe, it is possible to subtract (mix) part of the unwanted signal. For example, a plate signal during a tube inspection. It is also possible to control two probes with two separate settings. Easy to use, with a menu for each channel:
- red for channel 1
- blue for channel 2
- green for the mixing channel
| Spécification | AeroCheck 3 | |||||
| Probes | Connectors (IP68) | Lemo 12 (Absolute, Bridge and Reflection and Rotor) Lemo 00 (for single-element absolute probe)Simultaneous use of two probes with LEMO12 and LEMO00 | ||||
| Fréquence |
Single frequency: 10 Hz - 20 MHz Dual frequency from 10Hz to 12.8MHz |
|||||
| Gain | Capacity | -18 to + 104 dB, in steps of 0.1 or 1 or 6dB ( 104dB max.) | ||||
| Input | 0dB ou 12dB | |||||
| Drive | -6dB to 10dB in 1dB steps (0dB reference 1mW at 50 ohm) | |||||
| Ratio X/Y max | +/- 100dB | |||||
| Phase | range | 0-359,9°, par pas de 0.1° | ||||
| Auto Phase | Automatically adjusts the phase to a specific angle. | |||||
| Filters | Passe Haut | DC to 2kHz. In 1Hz steps. Plus variable balance for drift compensation (0.01 - 0.5 Hz) | ||||
| Passe Bas | 1Hz to 2kHz. In 1Hz steps | |||||
| Manual or automatic scale | Automatic balance or manual selection of the balance value according to the following 14 values: 2.2μH, 5.0μH, 6.0μH, 6.5μH, 7.0μH, 7.5μH, 8.2μH, 12μH, 5μH, 18μH, 22μH, 30μH, 47μH, 82μH | |||||
| Alarms | Box | Fully configurable, with automatic screen freeze, audible or visual alarm | ||||
| Sector | Fully configurable, with automatic screen freeze, audible or visual alarm | |||||
| Outputs | Open collector output (50V DC at 10mA max) available on Lemo 12 socket | |||||
| Affichage | Type | 18-bit color display, 5.7'' diagonal 145mm. Sunlight readable | ||||
| Visible zone | 115.2 x 86.4mm (Horizontal x Vertical) | |||||
| Resolution | 640 x 480 (pixels) | |||||

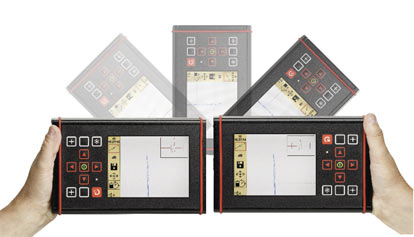

| Flip | Screen orientation (manual or automatic) to adapt to left- and right-handed users | |||||
| Thème couleurs | User-configurable, including high-contrast themes | |||||
| Ecran Configurable | Full screen, single or dual display with different panel sizes and positions | |||||
| Display modes | Impedance plane, time base (0.1-20 seconds * 1-200 samples), Cascade and Galvanometer. | |||||
| Graticule | Grid (4 tailles 5, 10,15 et 20% FSH), Fleece (4 tailles 5, 10,15 et 20% FSH) | |||||
| Offset | Spot Position: Y de -50 à +50% et X de -65 à +65% | |||||
| Display of balancing point coordinates | Display in X,Y or R,θ | |||||
| Configuration summary | All settings can be displayed on screen | |||||
| Removable external memory | Save settings | MicroSD card up to 32GB stores up to 10,00 settings | ||||
| Screen capture recording | MicroSD card up to 32GB stores up to 10,00 captures | |||||
| Data logging | Raw data can be recorded in sequences of up to 164 seconds. | |||||
| Replay recordings | Replay of data files on device or PC | |||||
| Sorties | PC connectivity | USB (remote control, real-time data, data transfer) | ||||
| Digital alarm output | On Lemo 12 connector | |||||
| VGA | Sortie VGA (DE-15) | |||||
| Languages | English, French, Spanish, Italian, Portuguese, Russian, Japanese, Chinese, Turkish, Czech, Norwegian | |||||
| Start-up test | The device performs a complete startup test of : Ram, SD-Ram, µSD, accelerometer and display buffer | |||||
| Power supply | External | 100-240 v 50-60Hz 30 Watts (Lemo OS connector) | ||||
| Battery | Internal 7.2V @ 3100mAH | |||||
| Load utilization time | With welding probe with 50% backlighting for up to 7 hrs. | |||||
| Temps de charge : | 2.5-hour charge, device can be recharged while in use | |||||
| Environment | Weight including internal battery | 1.15 kg , 2.54 lbs | ||||
| Dimensions (W x H x D) | 222.2mm x 152.2mm x 47.4mm / 9.4” x 5.7” x 2.1” | |||||
| Materials | PC-ABS and TPE enclosure | |||||
| Operating temperature | -20° à 60 °C | |||||
| Storage temperature | -20 à 35 °C | |||||
| IP - watertightness | Designed to meet IP64 requirements | |||||
| Additional functions | ||||||
| Guides | Displays a slide show with, for example, a procedure or manuals | |||||
| Attached files | Screenshots and data are saved in a folder with the name of the setting used. | |||||
| Loop" function | Allows adjustment of Phase, Gain and Filters on a screen freeze | |||||
| Trace |
|
|||||
| Conductivity mode specifications | |
| Frequency | Operates at a single frequency selectable between 60, 120, 240 and 480kHz |
| Precision | +/- 0.05%IACS in the range 0.5% - 10%IACS |
| +/-0.25%IACS in the 10% - 25%IACS range | |
| +/-0.5%IACS in the 25% - 60%IACS range | |
| +/-1%IACS in the 60%-110%IACS range | |
| Lift-off corrected measurement up to 1mm | |
| No temperature compensation | |
| 90% confidence interval for all errors | |
| Resolution | 3 decimal places max |
|
|
