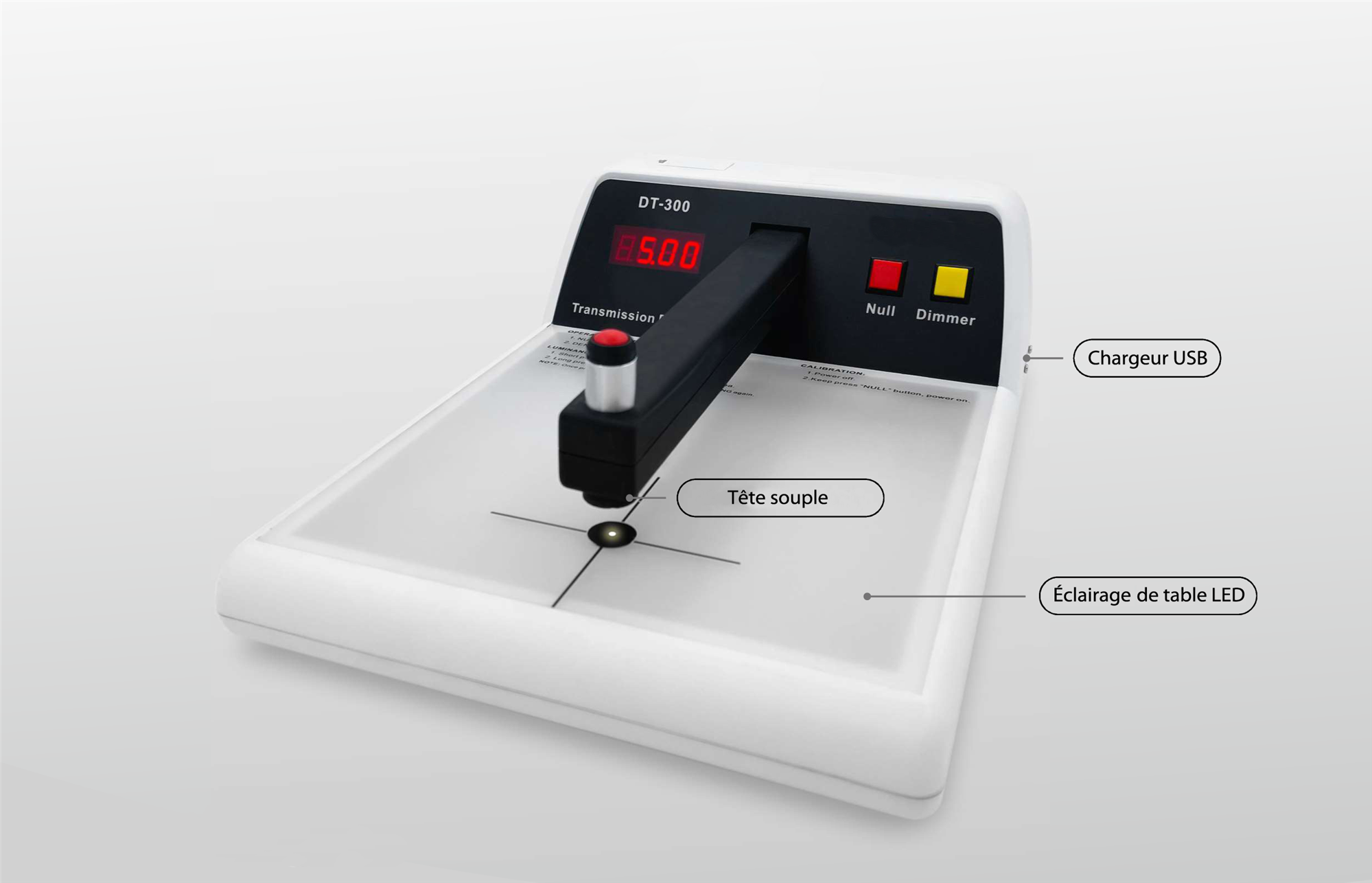

TD-300

For precise determination of optical densities on X-ray films, the TD-300 features proven measurement technology. The 4-digit display delivers precise, stable and reproducible measurements on all types of black and white film, up to a density of 5.0D. No preheating is required; it also features automatic temperature compensation. What's more, the arm's high-intensity spotlight makes it easy to locate the measurement zone. Finally, the probe protection reduces the risk of film damage. The LED reading table can be activated at 5 different light levels. Two illumination zones can be selected. Lightweight and robust, the TD-300 is the perfect tool for both laboratory and on-site use.

Equipment



Case	PVC
Display	LED 4 Digits
Measurement range	5.0D
Resolution	0.01D
Display	0.00 - 5.00D avec ouverture de 2mm ou 3mm0.00 - 4.00D avec ouverture de 1mm
Precision	+/-0.02D
Reproducibility	+/-0.01D
Illuminated table	185 x 225mm
Communication port	USB 2.0
Power supply	90 ... 260V / 50 ... 60Hz
Dimensions	360 x 260 x 120mm
Mass	1,7 kg

Features



Color temperature	6 000K
Luminance	0 cd/m² 6,100 cd/m² 15,100 cd/m² 31,900 cd/m² 51,900 cd/m²
Diaphragm opening	1mm, 2mm ou 3mm
Measuring arm length	230mm

Supply

TD-300 densitometer supplied complete with :

• Plug-in power supply Test certificate, certificate of conformity

  Accessories :

INDUSTREX grey scale (17 levels from 0.18 to 4.2D)	ref : 184 2137
BAM-certified reference scale (15 levels from 0.2 to 4.8D)	ref : 23 01 21
