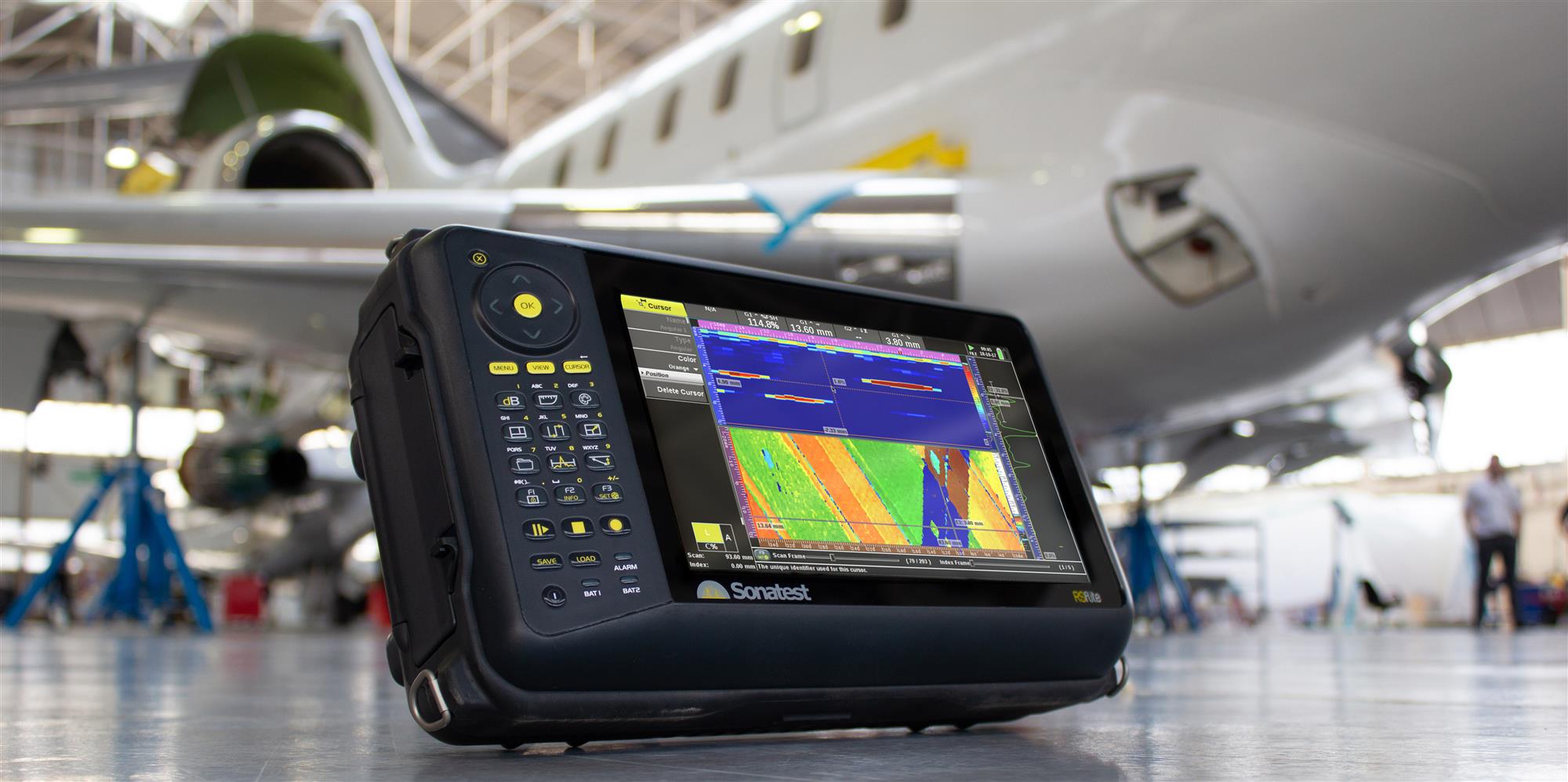

Ultrasonic non-destructive testing has been used to inspect composites for many years. Comprehensive volumetric integrity reports can be generated, incorporating imaging that is as easy to interpret as traditional X-rays. Sofranel is proud to present the new RapidScan: the multi-element line-scan solution, comprising RapidScan, UTmap software and WheelProbe2.
| Key features | ||
|---|---|---|
| Lightweight reinforced frame | Linear electronic scans | T-Scan imaging |
| Patented rubber wheel | Touch screen | Post-analysis |
| Best acoustics on the market | Portable device | Automatic report |
| Advantage | ||
| Immersion quality A-Scan data | Optimized user interface for composite inspection | Adjustments can be made after acquisition |
| Ease of use with a lightweight, ergonomic design | Quick installation and exceptional inspection speed | Automatic data analysis and rapid interpretation |
| Excellent subsurface resolution | Ready for all site conditions | Ready for all site conditions |
| LINE SCAN | US CONVENTIONAL | |
|---|---|---|
| Bandwidth | 0.2 to 20 MHz | Key features |
| Tension émission | 100V - 50V ActiveEdge© | 400V - 100V ActiveEdge© |
| Tracks | 128 channels | 2-way |
| Gain range | 80dB | 100dB |
| Sampling frequency | 125MHz @ 12 bits (processing 16 Bits) | 50/100/200MHz @10 bits (processing 16 bits) |
| Max. recurrence frequency | 50 000 Hz | 20 000 Hz |
| L-Scan Resolution | 1,2,3... no incrementation and double res. | - |
| Data throughput and storage | 155 MB/sec and 128 GB SSD (no file size limit) |
| Screen | Large TACTILE 10.4" LCD display with LED backlighting, 1024x600 resolution |
| Communication ports | WIFI 802.11n, Ethernet Gigabits & 3 master USB 2 |
| Standards compliance | ISO 18563 (EN16392) & EN12668 |
| Autonomy | 6.6h (hot-swappable batteries) |
| Operating temperature | -10°C à 40°C (14°F to 104°F) Stockage : -20°C à 60°C (-13F to 140°F) |
| Case dimensions | 115x220x335 mm (4.52 x 8.66x13.19 in) |
| Wheight | 4.80 kg (10.5 Ib) without battery, 460 g (1 lb)/battery |
| Analysis software (PC) | UTmap pour Windows® 7-8-10 & Linux®OS |
| Remote control software (PC) | Xpair pour Windowsx® 7-8-10 |
Do not hesitate to download the notice (PDF format) for this product:
