Projecteur UV-A-S-LED

Any questions?

You can contact us by email at infosof@sofranel.com or by phone at ‪+33 (0)1 39 13 82 36‬.

Industries & Applications

LED UV Lamp

UV-A LED projector with battery and/or mains power for fluorescent penetrant inspection and magnetic particle testing, available in two models:
  • An appliance with a 100% UV filter, fully compliant with all aerospace standards (ASTM E3022-18 / RRES 90061 / AITM6-1001-13 / NADCAP …) as well as conventional inspection standards (NF EN ISO 3059 / NF EN ISO 9934-3 / NF EN ISO 3452-3).
  • An appliance without a UV filter, compliant with NF EN ISO 3059 for inspection of raw parts or for leak detection applications using fluorescent tracer.
Characteristics S-LED Mains S-LED Mains / Battery***
BL 31S-LED365S-45 ECO 31S-LED365S-65 BL-31S-LED368B-46 ECO 31S-LED365B-65
Wavelength 365 nm ± 5 nm
Irradiance (µW/cm² at 381 mm) 4000 µW/cm² 6000 µW/cm² 4000 µW/cm² 6000 µW/cm²
Parasite light < 5 lux
White light > 1000 lux
4 UV-A LEDs + 2 white LEDs
Purple anti-glare filter
Sealing index IP68
Weight 600 g 800 g
Battery autonomy (> 2 hours)
Dimensions 120 x 200 x Ø 100 mm
5 m cable length**
Conformity certificate ISO 3059 and leak detection with peak measurement****
Conformity certificate ASTM E3022-18 / AITM6-1001-13 / RRES90061 / NADCAP / ISO 3059 with peak measurement****
UV-A + white light simultaneously (doubt removal) on request
Timed operation

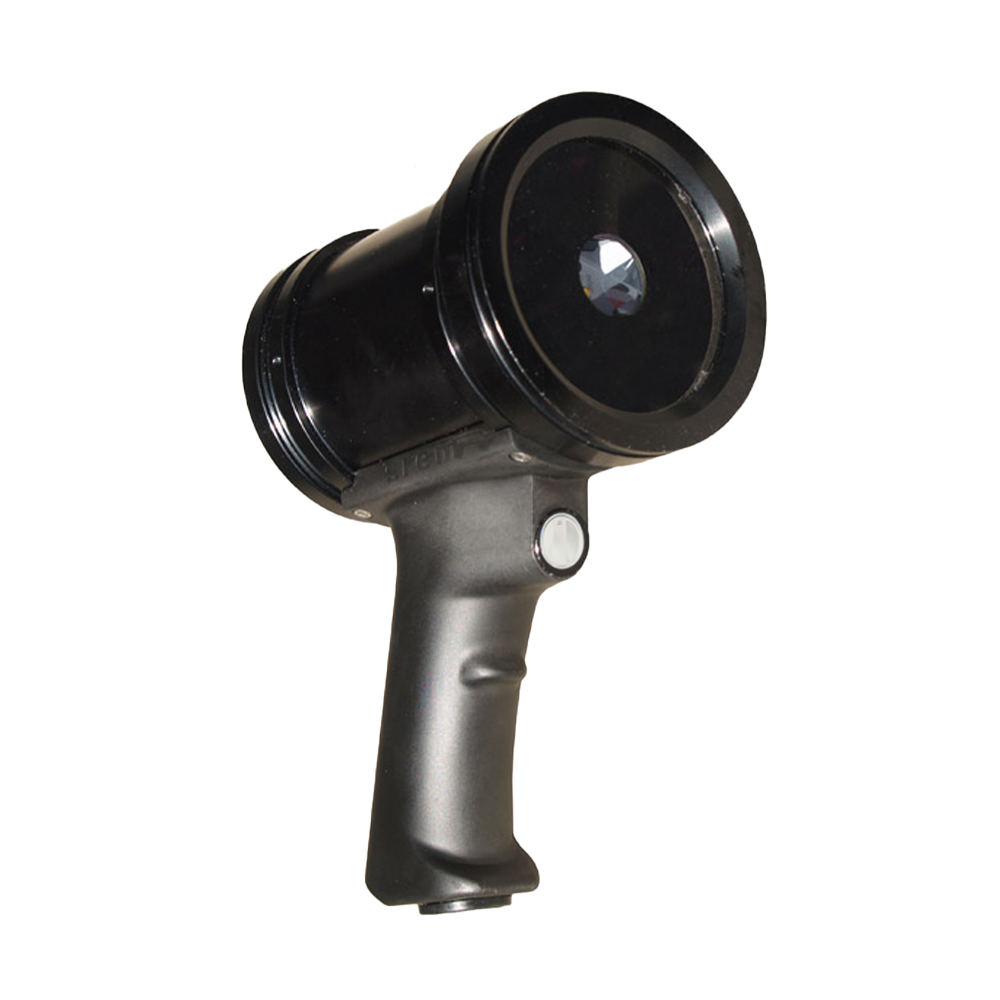

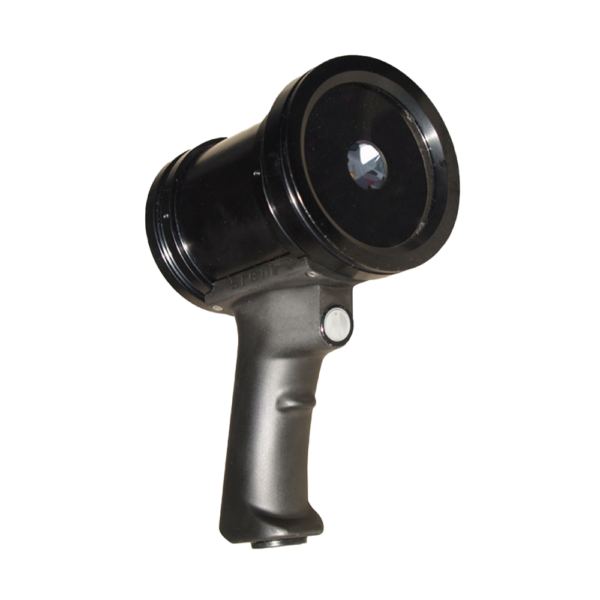

Description of S-LED projector
1: White light pressure switch with a visible operation indicator (red, orange, and green). The indicator turns off once all checks are correct to avoid disturbing the operator's vision.
2: Waterproof and resistant aluminum housing (shock, chemicals, IP68...), cooling by natural convection.
3: 2 white LEDs.
4: 4 UV-A LEDs.
5: UV-A light pressure switch with timed operation (1st impulse 5 minutes, 2nd impulse 100 minutes) then off.
6: Ergonomic handle for easy grip, resistant to magnetic particle inspection products, penetrants, and tracers.
