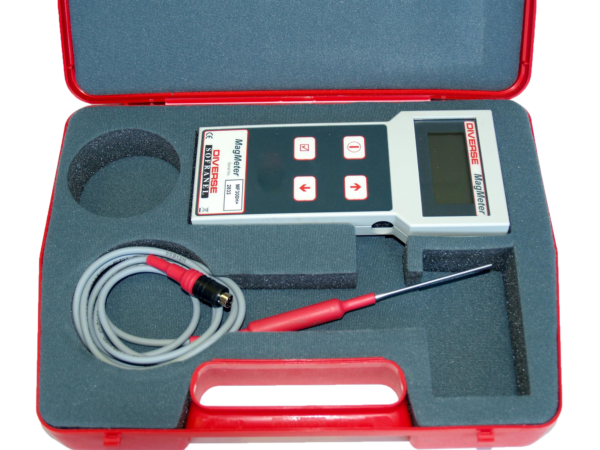

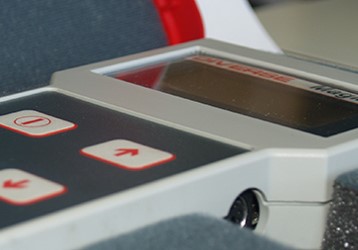

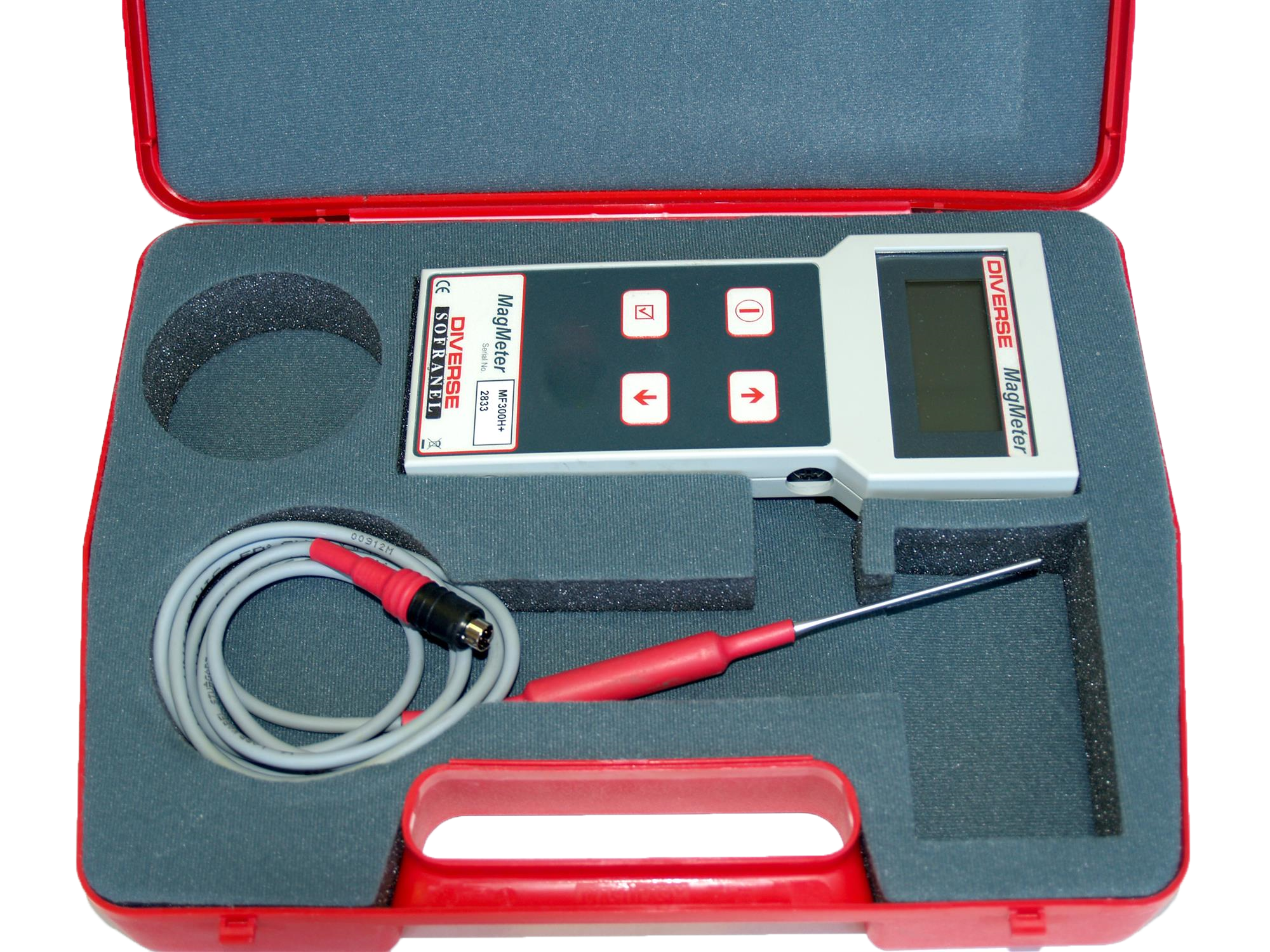

MF300H

The MF300H digital meter is designed for measuring tangential and residual magnetic fields, indicating their direction. It displays average, peak, effective, and TRMS values. Measurement range: +/- 1,600 kA/m. Different units available for selection (kA/m, Gauss, Tesla, mTesla, Oersted).

DETECTION CHARACTERISTICS
Sensor	Hall effect sensor
Measurement range	0 to 19,990G (1600 kA/m)
Possible units	Gauss, Tesla, mTesla, Oersted, kA/m
Values	Average, peak, effective, TRMS
Accuracy	1% across the full range at 20°C
Recording	100 values (intervals from 1 to 1000s)
Sampling frequency	0.5 kHz
MECHANICAL AND ENVIRONMENTAL CHARACTERISTICS
Dimensions	Case dimensions: 165 mm x 100 mm x 50 mm
Weight	1.1 kg with case
Probe size	Total length with handle: 160 mm, sensitive element 2.2 x 6.5 mm (sensitive area 0.2 x 0.2 mm)
Cable length	1.50 m
ELECTRICAL CHARACTERISTICS
Electromagnetic compatibility	Compliant with standards EN 61326 Ed.97 + A1 Ed.98 + A2 Ed.01
Power supply	4 rechargeable NiCd type AA 1.5 V batteries

*This equipment must be checked periodically (once a year or every 6 months if NADCAP). SOFRANEL can provide a verification certificate for the device ensuring traceability to national standards (COFRAC affiliation)
