MAG-HB

MAG-HB

Magnetoscopy

Any questions?

You can contact us by email at infosof@sofranel.com or by phone at ‪+33 (0)1 39 13 82 36‬.

Add to Quote

Industries & Applications

Railway
Automotive

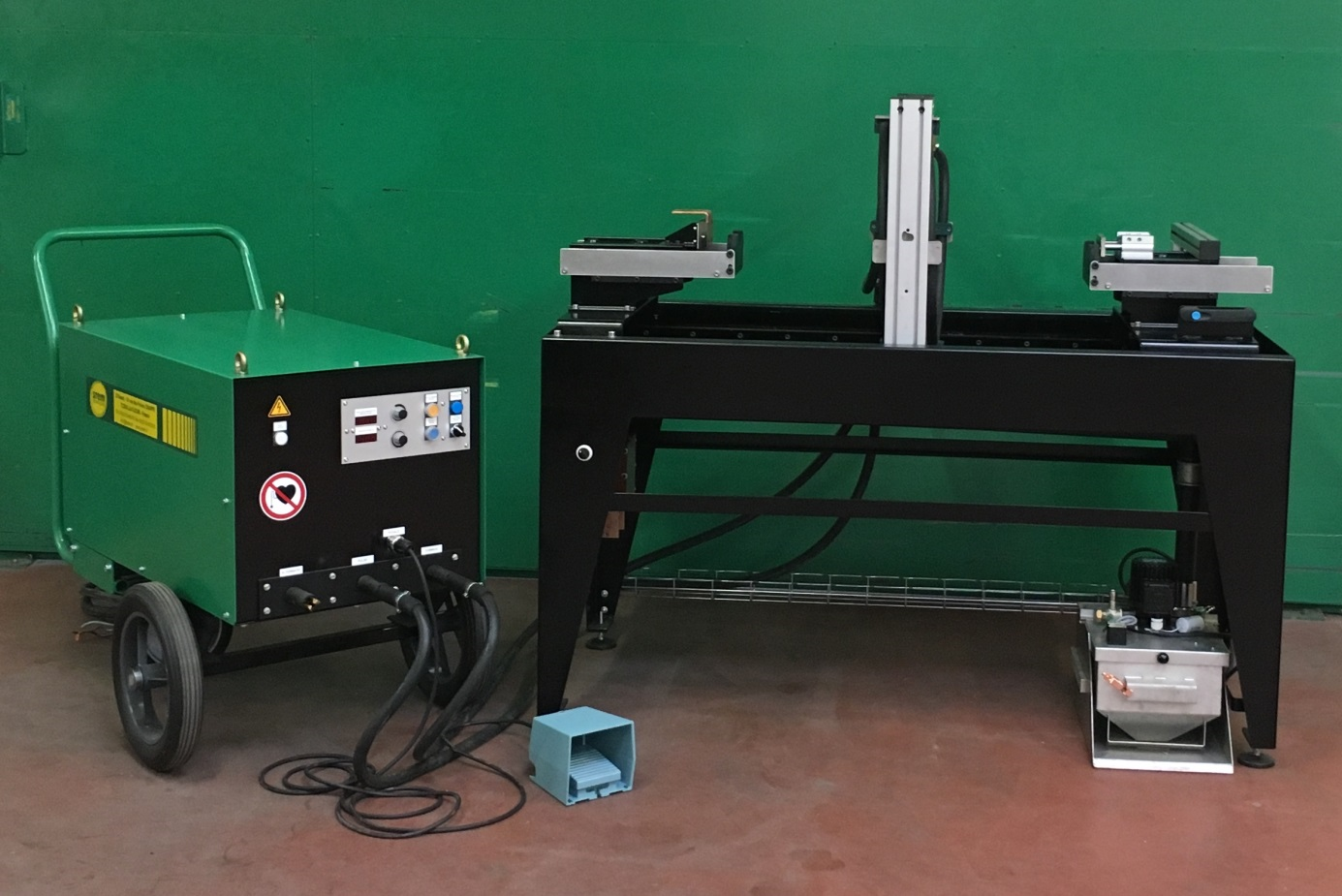

Versatility is the key feature of our economical MAG-HB magnetic inspection bench range. Combined with our GT current generators (twelve different versions) and available in two models depending on the desired size, they cover most needs based on the type of parts to be inspected. Many options are also available (solenoid, pump, switches, cabin, lighting, etc.). The GT current generator is external and detachable, allowing it to be used independently for field inspections (additional cables may be required). All our devices are manufactured in France by our group.

Features

Mag-HB4 Mag-HB9 Mag-HB15 Mag-HB20
Clamping Length (mm) 0-400 0-900 0-1500 0-2000
Clearance Width (Ømm) 0-250 0-400 0-600 0-600
ST109 Electrodes (mm) 115 x 60 115 x 60 - -
ST116 Electrodes (mm) - - 135 x 75 135 x 75
ST116x2 Electrodes (mm) - - 135 x 150 135 x 150
Max Weight per Piece (kg) 20 100 200 200

Recommended Generator

GT4-A ✔ ✔ ✔ ✔
GT4-P ✔ ✔ ✔ ✔
GT6-A - ✔ ✔ ✔
GT6-P - ✔ ✔ ✔
GT8-A - ✔ ✔ ✔
GT8-P - ✔ ✔ ✔
GT10-A - ✔ ✔ ✔
GT10-P - ✔ ✔ ✔
GT14-A - - ✔ ✔
GT14-P - - ✔ ✔
GT18-A - - ✔ ✔
GT18-6 - - ✔ ✔

Options

Coil Ø 300mm ✔ ✔ ✔ ✔
Coil Ø 500mm - ✔ ✔ ✔
Coil Ø 700mm - - ✔ ✔
Electrode/Coil Switch ✔ ✔ ✔ ✔
15L Tank ✔ ✔ ✔ ✔
50L Tank - - ✔ ✔
Cabin 1: L 3000 x W 3000 x H 2200 ✔ ✔ - -
Cabin 2: L 4500 x W 3000 x H 2200 - - ✔ ✔
Cabin Ventilation ✔ ✔ ✔ ✔
UV-A Ceiling Light ELN5061B ✔ ✔ ✔ ✔
UV-A Ceiling Light ELN5121B ✔ ✔ ✔ ✔
UV-A Ceiling Light Hook (without cabin) ✔ ✔ ✔ ✔
