Ferrite Number

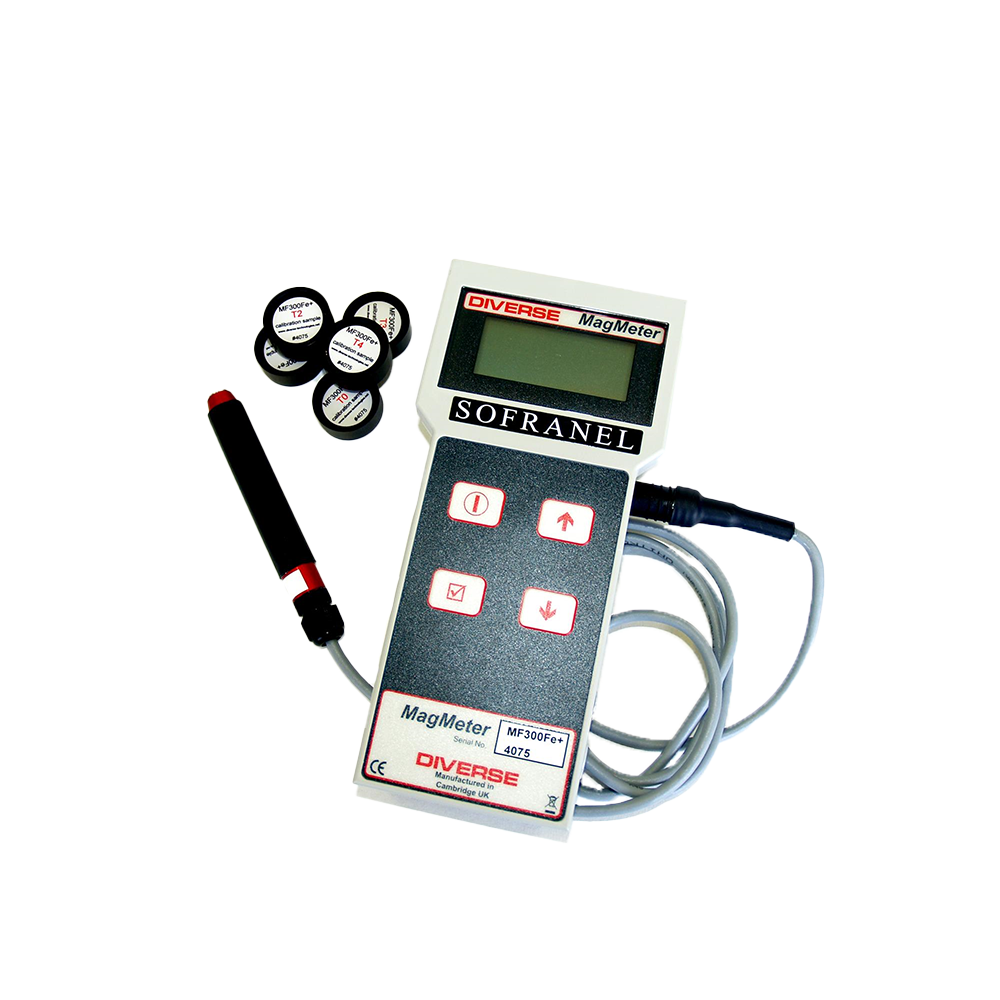

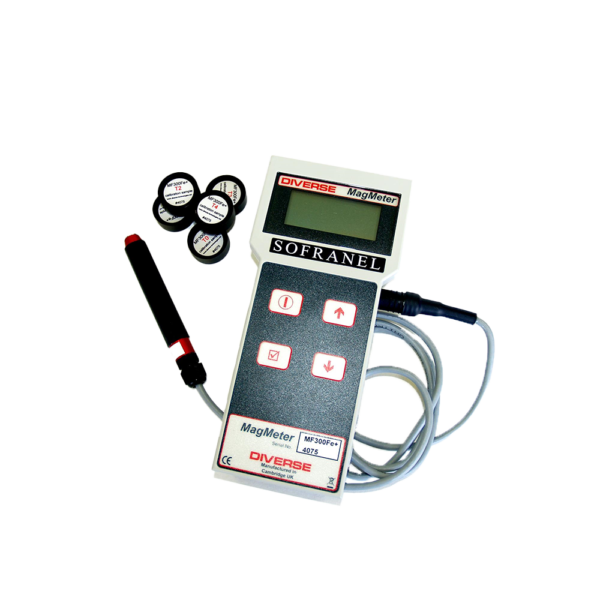

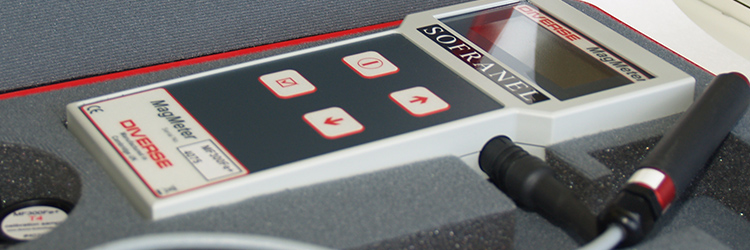

Digital device for measuring ferrite content or number. Four probe models available (up to 5 interchangeable on one device): standard P10 Ø 10 mm probe suitable for most applications, small surface straight P46 probe, P46R angled probe (6 x 4 mm), and the P10ac cooling probe for hot measurements. Delivered in a case with a certificate and five calibration shims.

Ferrite Number	0,1 to 115 FN
Ferrite Percentage	0,1 to 80,5%
Automatic Zero	YES
Mode	Average or Maximum
Resolution	0,1 FN / 0,1F%
ACCURACY FN 0 - 10FN 10 - 30 FN 30 - 115	P10/P46/P46R (10-30°C) ± 0.5 FN± 5 % ± 10 %	P10ac (30-300°C) ± 1 FN± 10 % ± 20 %
Probe Dimensions	P10/P10ac Ø15mm - length 120mm	P46 Ø15mm - length 150mm	P46R Boitier 75 x 30 x 20mm
Sensitive Area	Ø10mm	4 x 6mm	4 x 6mm
Cable Length	2m
Capture Depth	1mm
Case Dimensions	210 x 100 x 45mm
Power Supply	4 piles AA
Rechargeable Battery	En option
Weight with Case	1,25kg
Temperature Range	P10/P46/P46R 0- 40°C	P10ac 0- 300°C
Memory	1 000 mesures
RS232/USB Connection	En option
Set of 5 Secondary Calibration Standards	3 à 115 FN
