Éprouvette criquée HOFFMANN (PSM-5)

Stainless steel test block equivalent to the PSM-5 panel and compliant with Pratt & Whitney specification TAM 146040. Allows overall performance control of an in-service penetrant inspection system according to aerospace standards.

ADVANTAGES

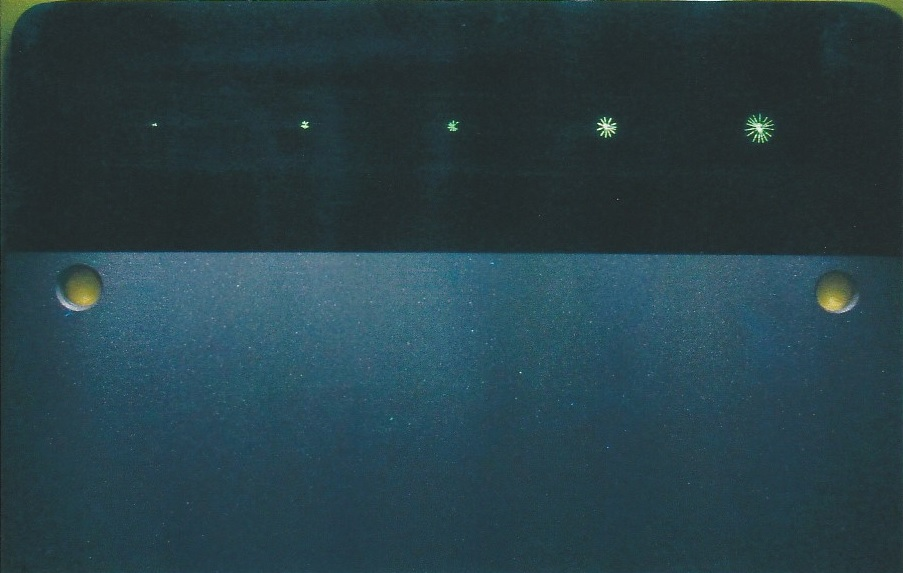

• Quality and precision of star indications
• Narrow and uniform defect width
• Accurate sizing of star diameters
• Long-lasting defect durability
• Easy to clean
• Approved and recognized by nearly all aerospace prime contractors

COMPLIANCE & APPROVALS

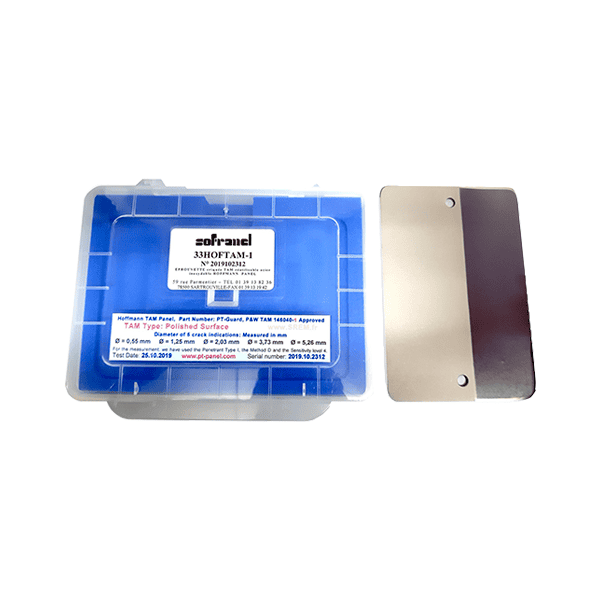

The HOFFMAN test block includes a serial number and is delivered with a certificate of compliance to TAM 146040 and a calibration certificate (defect sizing and surface roughness Ra/Rz). A label indicating the diameter of each star is affixed to the transparent storage box. On request, SOFRANEL also provides a reference photo produced according to the customer's specific system and products (contact us).

APPROVALS	COMPLIANCE
Pratt & Whitney	Pratt & Whitney Aircraft Drawing Specification No. 146040, issue 2016
Airbus	General Electric P3TF2 (§5.4.1 & 10.1 / Rev.$29)
Safran	ASTM E-1417 §7.8.3.1
General Electric	RRES90061
Delta Airlines	MIL-STD-6866, §5.8.3, 33B-11
PCC	NAVAIR 01-1A-16 and TM43-0103
Rolls Royce
