Contact transducers

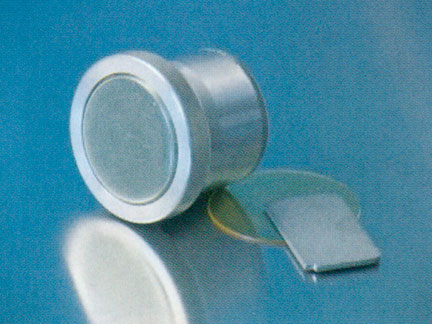

These are longitudinal waves translators single piezoelectric element, designed to be applied directly on the surface of the part under examination.

Benefits:

• Protection across the front of the translator increases its wear resistance and impact resistance.
• The translators of this series are recommended for controls in difficult conditions
• Their acoustic impedance is close to that of most metals.
• They can be used on a wide variety of materials.
• Translators Series High Sensitivity “CHF” and those of High Resolution from the series “CHG” meet many requirements acoustic performance.
• Translators High Resolution “CHG” provide better signal / noise ratio for mitigating or dispersing materials.
• Translators High Resolution “CHG” ensure better recovery after the transmit pulse, resulting in better resolution near the surface.

applications:

• For defects with the right translator and measurement of thicknesses.
• Detection and evaluation of delaminations and imperfections.
• Characterisation of materials and measurement of the sound propagation velocity.
• Control plates, billets, bars, forgings, castings or extruded, as well as a large number of other metallic or non materials.

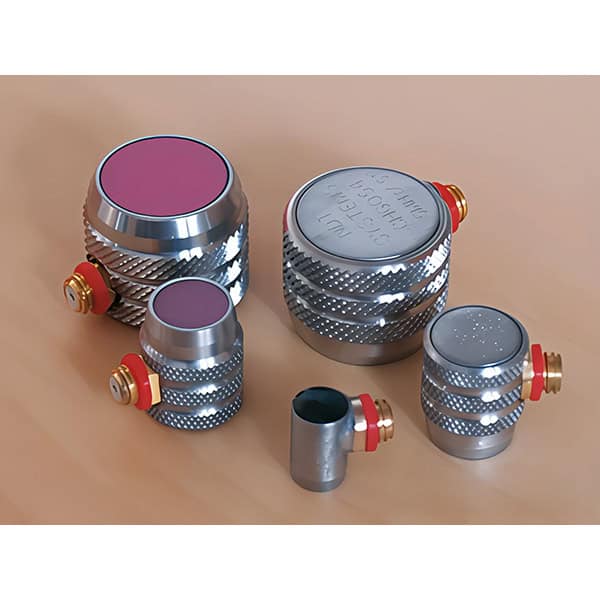

Contact FingerTip Cases

• Stainless steel case
• Ergonomic profile
• Identification by serial number according to NF EN 12668-2
• Translators come with individual characterization
• Microdot connector radial position (Optionally, a connector Microdot axial position can be provided.)
• Cable for use with these LEMO1 translators / Microdot, LCM-74-2 or reference BNC / Microdot reference 2124.2

Boîtier CHF et CHG

	Element diameter	A	B	C	D
	6 mm	14 mm	11,5 mm	9,2mm	3,8mm
	10 mm	14,5 mm	16 mm	13mm	4mm
	13 mm	15,5 mm	19 mm	16mm	4mm
	19 mm	16,5mm	25 mm	22mm	4mm

Boîtier SLP

	Element diameter	A	B
	5 mm	12 mm	12 mm
	10 mm	15 mm	17 mm
	15 mm	15 mm	22 mm
	25 mm	15 mm	32 mm

* New references

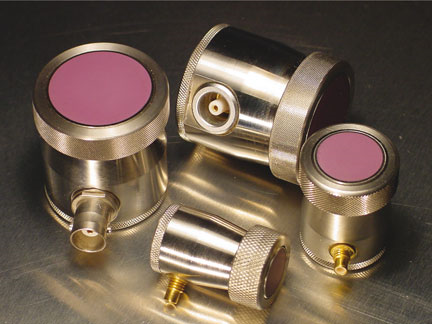

Boîtiers Contact Standard

• Stainless steel case designed for harsh industrial use.
• Ergonomic profile
• Identification by serial number according to NF EN 12668-2
• Translators come with individual characterization
• Standard BNC connector radial position
• Radial connector LEMO LEMO 1 or 00 possible for SLHxx references or SLMxx
• Axial BNC or LEMO 1 for references LLFxx
• Cable for use with these LEMO1 translators / BNC, BNC or reference 1612.2 / 1610.2 Reference BNC

Boîtier CMRF et CHRF

	Element diameter	A	B	C	D
	13 mm	33,5 mm	20 mm	19 mm	8,1 mm
	19 mm	33,5 mm	25 mm	24 mm	8,1 mm
	25 mm	33,5 mm	32 mm	30 mm	8,1 mm

Boîtier SLH et SLM

	Element diameter	A	B	C
	10 mm	21 mm	32 mm	19 mm
	15 mm	26 mm	32 mm	24 mm

Boîtier LLF

	Element diameter	A	B	C
	tous	53.5 mm	39 mm	44 mm
