Analyse d’image

Name: Analyse d'image - Fournisseur de solutions en mesures et contrôles non destructif (CND)
Price: 90.00 EUR
Availability: InStock

Radiology

Industries & Applications

Railway

Automotive

Indispensable not only for interpreting a digital image, but also for qualifying your digital chain in terms of SNR (dsgfg) and SRB (dfdsfgdg). In short, IPS012 is :

Part of the "Baltoscope Inspection suite
Image formats analyzed: tiff, bmp, jpeg, raw, dcm
DICOM & DICONDE compliant
Pre-programmed filters
Available add-on features
Grayscale window

IT recommendations :

- Intel Core i5 or higher
- 4 Gb RAM
- Video grabber NVIDIA QUADRO 2000
- HDD: 250 Gb SATA 6 Gb/s, 7200 RPM
- Windows 7 Pro, 64-bit

Features :

- Optimized for use with B&W high-contrast & brightness monitors
- Automatic contrast adjustment for the entire image or ROI
- 1 to 4 images displayed for comparison
- Interactive contrast & brightness enhancements using the mouse
- Gray profile
- Zoom
- Rotation and mirrors
- Pre-programmed filters (sharpening, flattening, edge enhancement, etc.)
- Measurement tools (distance & angle)
- Text and shape insertion (rectangle, circle, line, arrow, etc.)
- Archiving tools with different extensions available (JPEG, TIFF, etc.)

Advantages :

Part of the Baltoscope Inspection Suite
Operator's own filters
Detector qualification report in PDF
Acceptance of different image formats
Works with most image formats
DICOM & DICONDE compliant
Customizable metadata
Pipe & quick registration for image evaluation
Add-on features available
Designed to work with CR, DR, LDA & more

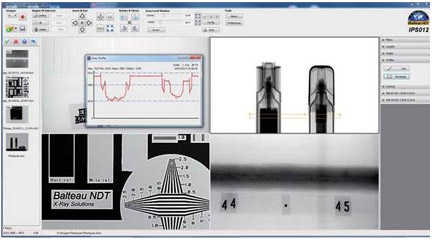

IPS012 is the latest version of Balteau NDT's image processing software for the X-ray industry. It is part of the "Inspection Suite" comprising 12 different modules capable of controlling all aspects of your X-ray system. IPS012 has been developed by our team of engineers to make the software extremely easy to use. Ahead of the competition, Balteau is the first to create a modular suite of software built on the same base to create a user-friendly working environment and thus ensure complete compatibility between all the components and modules of your installation. The suite has been designed for use with Balteau systems, but is also 100% compatible with most current systems. With a direct link to the acquisition module, the images taken are automatically transferred to IPS, after which image processing can begin. Many different features such as "zone of interest", "grayscale", "filters" etc. are included in the basic version, but not only that, many more options are available. IPS012 incorporates all the usual processing algorithms, plus a number of new features that will soon find their way into your day-to-day work. Grey profile : The gray profile has been created to help the user to identify defects as easily as possible, which can sometimes be difficult to see, but also to facilitate their measurement. It is displayed as a graph representing the gray level from the line or rectangle previously defined on the image. Detector qualification, signal-to-noise ratio data, etc. IPS012 can create a complete report with an objective measurement of basic spatial resolution in compliance with EN ISO 17636-2:2010 and/or measure the signal-to-noise ratio. It can be very useful when precision is important to see small defects and can be added to the file with all the shots taken.

Do not hesitate to download the notice (PDF format) for this product:

Do not hesitate to download the documentation (PDF format) for this product:
