Description

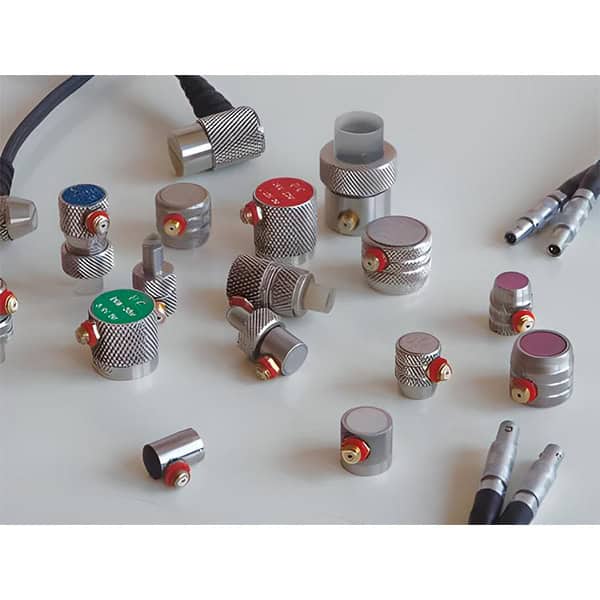

These translators are bonded, broadband face with hard contact and delay line. They are optimized for use with all precision thickness gauges and can be used with US equipment fault detection.
| Transducer | Frequency MHz | Diameter | Type | Output | Steel range | Notes |
|---|---|---|---|---|---|---|
| DCC 110 | 1 | 25 mm | contact | microdot radial | 5 – 508 mm | Piezo-Composite |
| DCC 175 | 1 | 19 mm | contact | microdot radial | 5 – 508 mm | Piezo-Composite |
| DCC 250 | 2 | 13 mm | contact | microdot radial | 4 – 508 mm | Piezo-Composite |
| DCK 250 | 2 | 13 mm | contact | microdot radial | 2 – 508 mm | – |
| DCC 537 | 5 | 10 mm | contact | microdot radial | 2 – 250 mm | Piezo-Composite |
| DCK 525 | 5 | 6 mm | contact | microdot radial | 1.5 – 200 mm | – |
| DCK 550 | 5 | 13 mm | contact | microdot radial | 1.5 – 250 mm | – |
| DCK 537 | 5 | 10 mm | contact | microdot radial | 1.5 – 250 mm | – |
| DCK 718 | 7 | 5 mm | contact | microdot radial | 1 – 125 mm | – |
| DCK 1018 | 10 | 5 mm | contact | microdot radial | 1 – 125 mm | – |
| DCK 1025 | 10 | 6 mm | contact | microdot radial | 1 – 125 mm | – |
| DLC 525 | 5 | 6 mm | delay line | microdot radial | 0.8 – 24 mm | Piezo-Composite |
| DLK 525 | 5 | 6 mm | delay line | microdot radial | 0.8 – 24 mm | – |
| DLC 1025 | 10 | 6 mm | delay line | microdot radial | 0.5 – 24 mm | Piezo-Composite |
| DLK 1025 | 10 | 6 mm | delay line | microdot radial | 0.5 – 24 mm | – |
| DLK 2025 | 20 | 6 mm | delay line | microdot radial | 0.4 – 24 mm | – |
| DLK 20125 | 20 | 3 mm | delay line | microdot radial | 0.2 – 24 mm | – |
| DLK 1220 PP SM | 12 | 5 mm | delay line | top | 0.5 – 13 mm | pencil Probe |
| DLK 12120 PP RM | 12 | 5 mm | delay line | microdot radial | 0.5 – 13 mm | pencil Probe |
| CFR 05004 | 5 | 6 mm | contact | microdot radial | – | – |
| C14 | 5 | 3 mm | contact | top | – | – |
| CFR 02008 | 2.25 | 13 mm | contact | microdot radial | – | – |
| CFP 02008 | 2.25 | 13 mm | contact | microdot radial | – | High Gain |
| CFR 10004 | 10 | 6 mm | contact | microdot radial | – | – |
| CFR 10002 | 10 | 3 mm | contact | microdot radial | – | – |
| C97-SM | 15 | 3 mm | contact | top | – | – |
| C98 | 20 | 3 mm | contact | radial | – | – |
| CRHP – 024TM | 2.25 | 13 mm | contact | top | – | High Gain |
| CRHP – 018TM | 1 | 25 mm | contact | top | – | High Gain |
